Get it by Wednesday, Jun 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

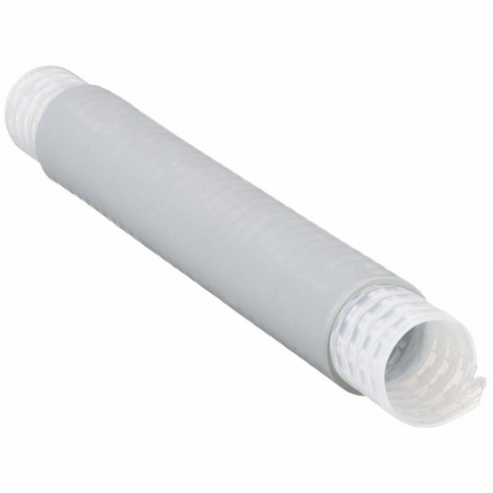

| Item | Cold Shrink Tubing |
| Cable Size | 6 AWG to 2 AWG |
| Color | Gray |
| I.d. After Shrinking | 0.27" |
| I.d. Before Shrinking | 14/25" |
| Length | 2" |
| Max. Voltage | 1000V |
| Shrink Ratio | Not Rated |
| Shrink Temp. | Not Applicable |
| Temp. Range | -66°F to +500°F |
| Wall Thickness After Shrinking | 0.350" to 0.560" |
| Wall Type | Medium Wall |
| Adhesive Lined | No |
| Dielectric Strength | 1000V |
| Features | Requires No Tools or Heat, Moisture Tight Seal, Suitable for Direct Buried Applications |
| Flame Retardant | No |
| Material | EPDM Rubber |
| Max. Temp. Rating | 500°F |
| Min. Temp. Rating | -67°F |
| Package Style | Individual Pieces |
| Shrink Tubing Properties | UV Light Resistant |
| Standards | ANSI C119.1 |
| Tubing Wall Type | Medium Wall |
| Use With Wire Size | 6 AWG to 2 AWG |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 2.79 |
| HS code | 3926909980 |
| Country of Origin | US |
| Model | Cable Range | I.d. After Shrinking | I.d. Before Shrinking | Length | Wall Thickness After Shrinking | Wire Range | Price | |
|---|---|---|---|---|---|---|---|---|
| 7000058007 | 6 to 2 AWG | 0.27" | 0.56" | 6.5" | Application Range min dia- max diameter .350-.560" | 6 to 2 AWG | €35.80 | |
| 7000005982 | 2 to 1/0 AWG | 0.35" | 0.72" | 2.5" | Application Range min dia - max diameter .420-.720" | 2 to 1/0 AWG | €30.78 | |
| 7000058008 | 2 to 1/0 AWG | 0.35" | 0.72" | 7.5" | Application Range min dia - max diameter .420-.720" | 2 to 1/0 AWG | €43.84 | |
| 7000058010 | 1/0 to 3/0 AWG | 0.48" | 0.95" | 3 1/5" | Application Range min dia - max diameter .550-.950" | 1/0 to 3/0 AWG | €34.59 | |
| 7000031486 | 1/0 to 3/0 AWG | 0.48" | 0.95" | 8" | Application Range min dia - max diameter .550-.950" | 1/0 to 3/0 AWG | €41.42 |
