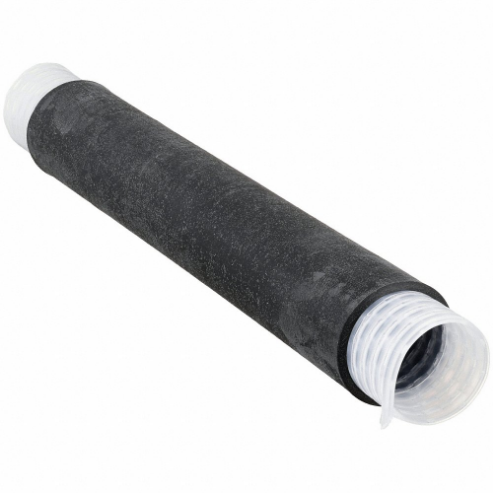

| Item | Cold Shrink Connector Insulators |
| Adhesive Lined | No |
| Cable Size | 10 AWG to 1/0 AWG |
| Color | Black |
| Flame Retardant | No |
| I.d. After Shrinking | 0.1" |
| I.d. Before Shrinking | 0.82" |
| Length | 8" |
| Length (straight Wireway) | 8" |
| Max. Voltage | 1000V |
| Package Style | Individual Pieces |
| Shrink Ratio | Not Rated |
| Shrink Temp. | Not Applicable |
| Shrink Tube Material Type | Flexible |
| Shrink Tubing Adhesive Lined | No |
| Shrink Tubing I.d. Before Shrinking | 0.82" |
| Shrink Tubing Length | 8" |
| Shrink Tubing Wall Type | Medium Wall |
| Temp. Range | -40°F to +194°F |
| Wall Thickness After Shrinking | 0.15" |
| Wall Type | Medium Wall |
| Wire Size | 10 AWG to 1/0 AWG |
| Dielectric Strength | 1000V |
| Features | Requires No Tools or Heat, Moisture Tight Seal, Suitable for Direct Buried Applications |
| Material | EPDM Rubber |
| Max. Temp. Rating | 194°F |
| Min. Temp. Rating | -40°F |
| Shrink Tubing Properties | UV Light Resistant |
| Standards | ANSI C119.1 |
| Tubing Wall Type | Medium Wall |
| Use With Wire Size | 10 AWG to 1/0 AWG |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 3.05 |
| HS code | 8546900000 |
| Country of Origin | US |
| Product | Model | Cable Range | I.d. After Shrinking | I.d. Before Shrinking | Item | Length | Material | Max. Voltage | Temp. Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7100164895 | - | 0.95" | 1.94" | Cold Shrink Tubing | 6" | EPDM Rubber | 1000 | -40 Degrees to 194 Degrees F | 50 | €3,871.75 | |
|
7000005997 | - | 0.95" | 1.94" | Cold Shrink Tubing | 6" | EPDM Rubber | 1000 | -40 Degrees to 194 Degrees F | 10 | €579.41 | |
 |
7000006133 | - | 0.55" | 1.18" | Cold Shrink Tubing | 11" | EPDM Rubber | 1000 | -40 Degrees to 194 Degrees F | 10 | €677.88 | |
 |
7000145516 | - | 1.27" | 2.67" | Cold Shrink Tubing | 9" | EPDM Rubber | 1000 | -40 Degrees to 194 Degrees F | 10 | €940.09 | |
|
7000058072 | - | 1.27" | 2.67" | Cold Shrink Tubing | 6" | EPDM Rubber | 1000 | -40 Degrees to 194 Degrees F | 10 | €530.35 | |
 |
7100010774 | - | 0.67" | 1.38" | Cold Shrink Tubing | 16" | EPDM Rubber | 1000 | -40 Degrees to 194 Degrees F | 10 | €1,094.23 | |
 |
7000132443 | - | 0.67" | 1.38" | Cold Shrink Tubing | 6" | EPDM Rubber | 1000 | -40 Degrees to 194 Degrees F | 10 | €416.49 |
