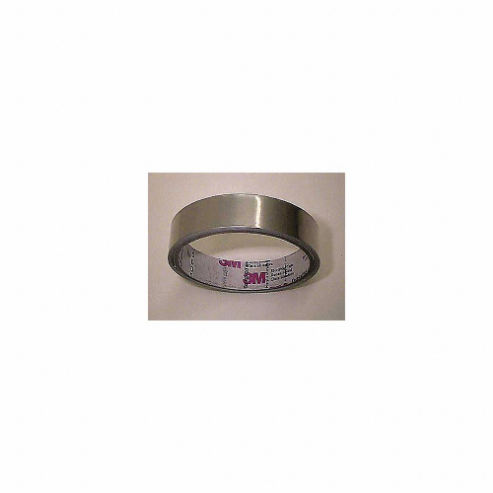

| Item | Shielding Foil Tape |
| Color | Copper , Silver |
| Core Dia. | 3" |
| Duct Tape Adhesive | Acrylic |
| Material | Copper Foil |
| Number Of Adhesive Sides | 1 |
| Product Form | Continuous Roll |
| Shape | Continuous Roll |
| Tape Backing Construction | Foil |
| Tape Color | Copper |
| Tape Type | Foil |
| Adhesion To Steel | 35 oz./in. |
| Breaking Strength | 25 lbs./in. |
| Elongation | 5% |
| Imperial Tape Length | 54 ft. |
| Imperial Tape Width | 3/4" |
| Maximum Tape Performance Temperature | 266°F |
| Metric Tape Length | 16.5m |
| Metric Tape Width | 19.1 mm |
| Minimum Tape Performance Temperature | -40°F |
| Series | 1183 Series |
| Shielding Effectiveness | Fair (50 dB to 70dB) |
| Specifications Met | EU, RoHS, UL Listed |
| Standards | ROHS 2011/65/EU, UL LISTED |
| Tape Adhesive Format | Single-Sided |
| Tape Adhesive Material | Acrylic |
| Tape Backing Material | Tin Plated Copper |
| Tape Resistance Properties | Heat-Resistant, Oil-Resistant, Oxidation-Resistant, Solvent-Resistant |
| Tape Sub-type | General Purpose Foil |
| Tape Tensile Strength | 25 lbs./in. |
| Tape Thickness | 2.8 mil. |
| Voltage Rating | 600V |
| Ship weight (kg) | 2.28 |
| Country of Origin | TW |
| Product | Model | Pkg. Qty. | Price | |
|---|---|---|---|---|
 |
7010320384 | 9 | €1,474.51 | RFQ
|
