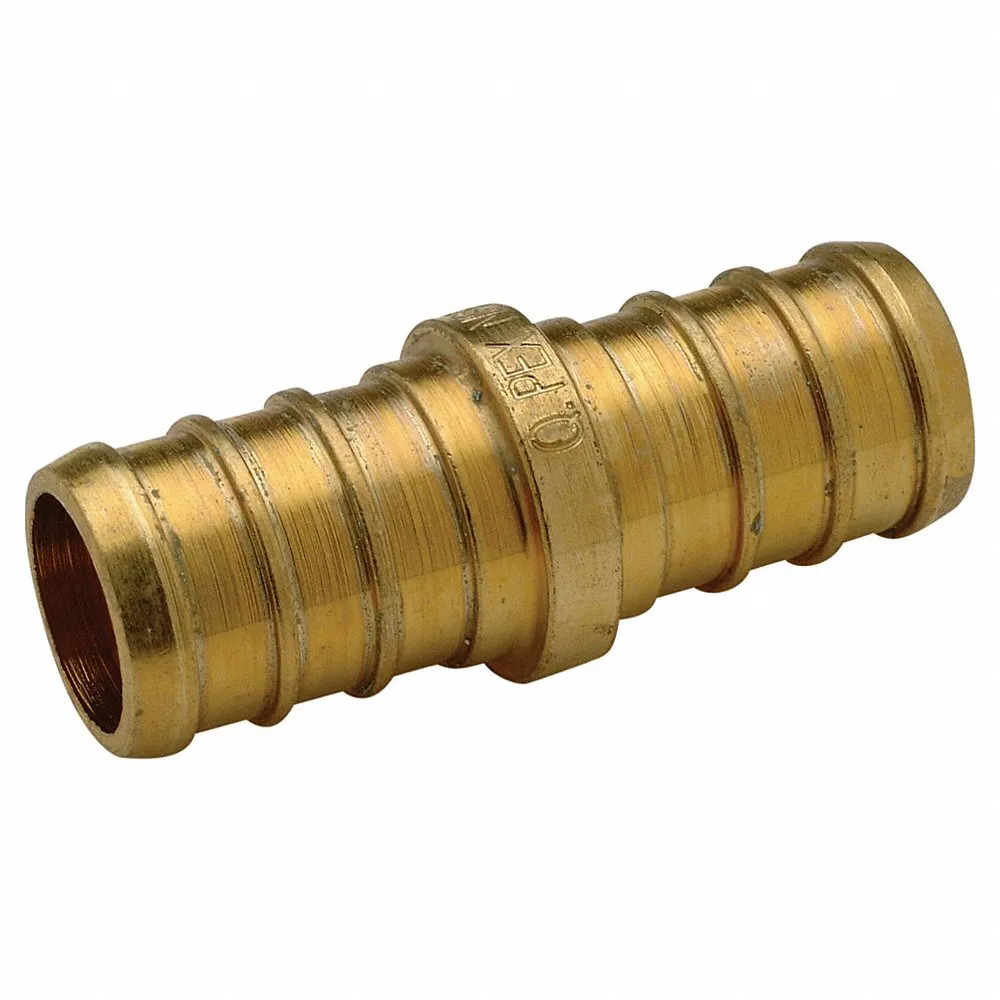

ZURN QQC64GX Coupling, Brass, Barbed X Barbed, 3/4 Inch Pipe Size, 1 1/2 Inch Overall Length, 10 PK
Request a Quote
Payment
Payment
| Item | Coupling |
| Application | Potable Water |
| Barb Style | Standard |
| Compatible Tube Material | Polyethylene |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Barbed |
| Fitting Side A Tube Inner Diameter | 24/25" |
| Fitting Side B Connection Type | Barbed |
| Fitting Side B Pipe Size | 3/4" |
| Grade | Grade C69300 |
| Max. Operating Pressure | 160 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 73°F |
| Overall Length | 1 1/2" |
| Specific Fitting Shape | Straight Connector |
| Material Grade | C69300 |
| Maximum Operating Pressure | 160 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 73°F |
| Size | 61/64" x 3/4" |
| Standards | ASTM F1807, ASTM F877, CSA B137.5, NSF/ANSI STANDARD 14, NSF/ANSI STANDARD 61 INCLUDING ANNEX G |
| Ship weight (kg) | 0.62 |
| Ship length (cm) | 3.81 |
