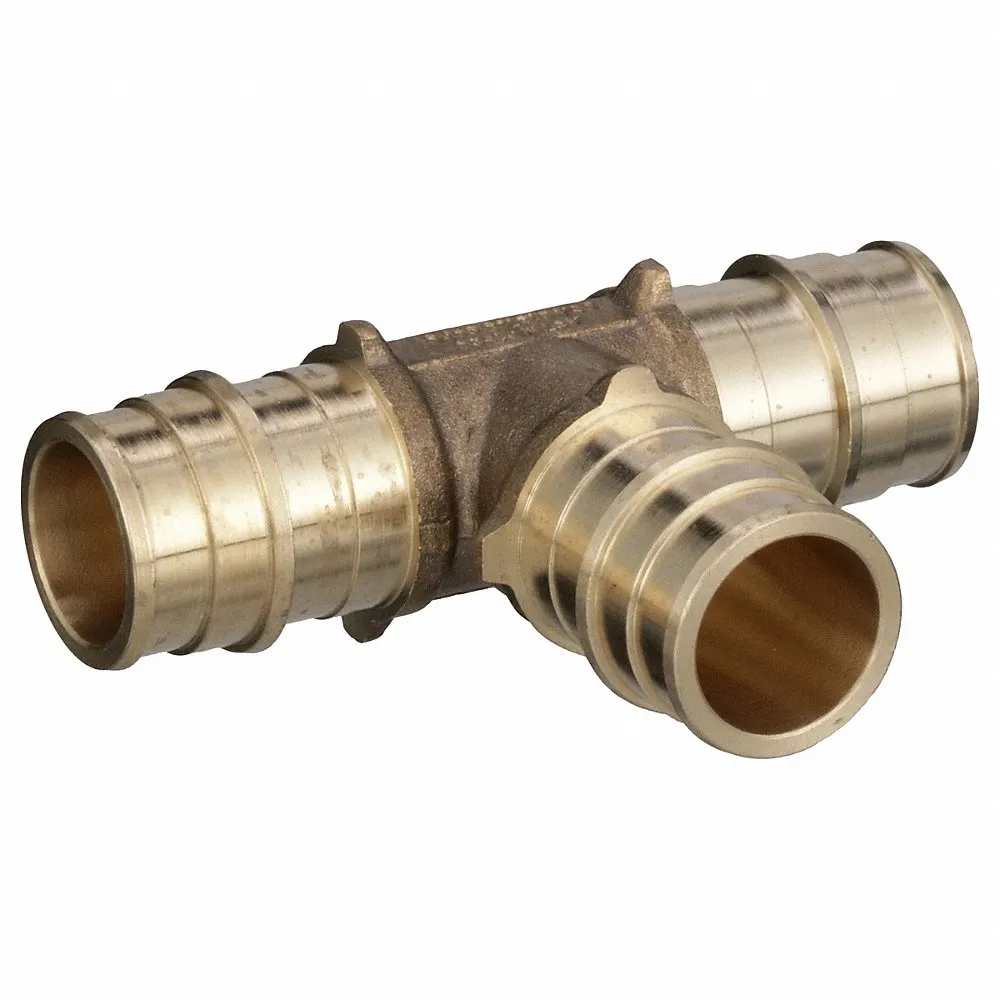

| Item | Tee |
| Application | Potable Water |
| Barb Style | Standard |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Barbed |
| Fitting Side A Tube Inner Diameter | 3/4" |
| Fitting Side B Connection Type | Barbed |
| Fitting Side B Tube Inner Diameter | 3/4" |
| Fitting Side C Connection Type | Barbed |
| Fitting Side C Tube Inner Diameter | 3/4" |
| Max. Operating Pressure | 160 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 73°F |
| Overall Length | 2.938" |
| Resistance Properties | Chlorine Resistant, UV Resistant |
| Specific Fitting Shape | TEE |
| Maximum Operating Pressure | 160 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 73°F |
| Size | 3/4" x 3/4" x 3/4" |
| Standards | ANSI STANDARD 372, ANSI STANDARD 61, ASTM F1960, CSA B137.5, NSF STANDARD 372, NSF STANDARD 61 |
