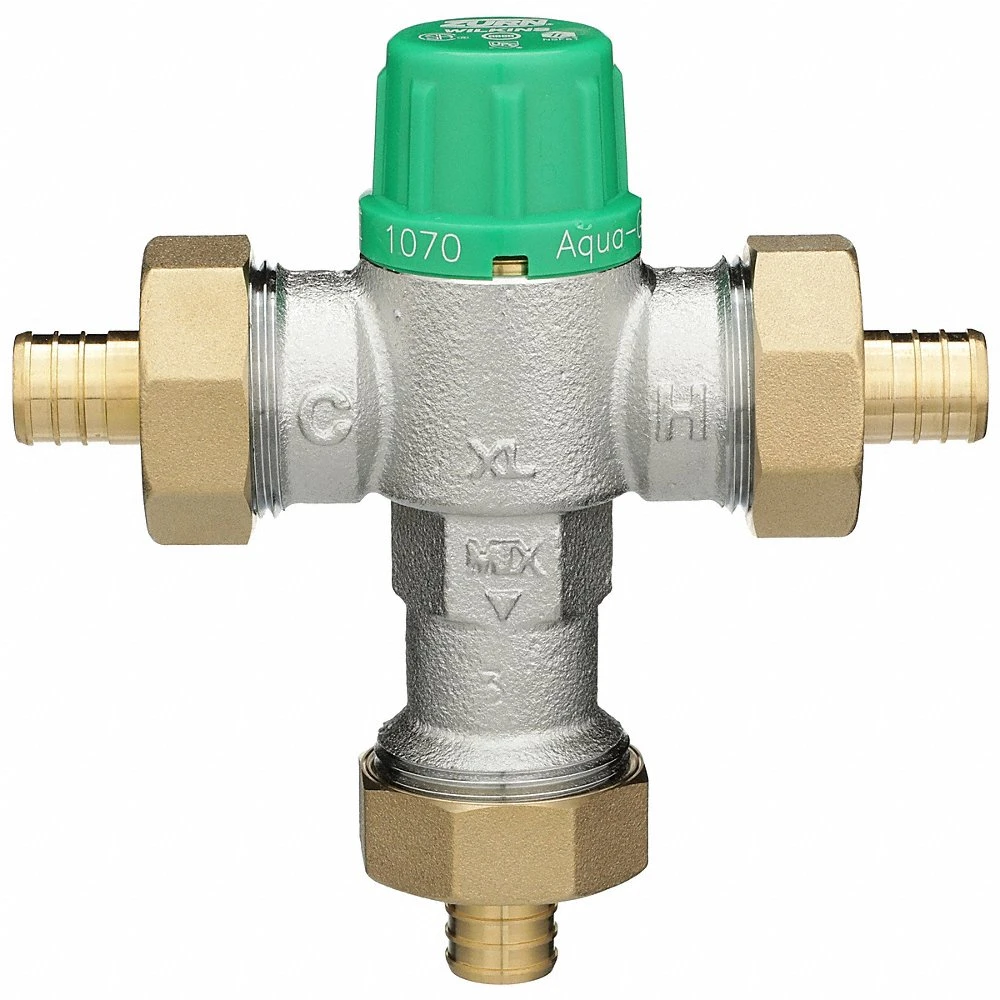

ZURN 12-ZW1070XLPEX Thermostatic Mixing Valve, Aqua-Gard ZW1070XL, Lead Free Bronze
Get it by Tuesday, Jun 17
€193.84 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Thermostatic Mixing Valve |
| Body Material | Bronze |
| Cold Inlet Temp. | +39°F to +80°F |
| Flow Rate | 0.25-10 GPM |
| For Use With | Hot Water Supply Systems |
| Hot Inlet Temp. | +120°F to +195°F |
| Includes | Strainer |
| Inlet Size | 1/2" |
| Inlet Type | Barb , Barbed |
| Max. Pressure | 145 psi |
| Mfr. Series | Aqua Gard ZW1070XL Series |
| Outlet Size | 1/2" |
| Outlet Type | Barb |
| Overall Height | 5.562" |
| Overall Width | 6.188" |
| Temp. Range | +95°F to +131°F |
| Connection Type | Barb x Barb |
| Includes Temperature Gauge | Temperature Gauge Not Included |
| Inlet (cold) Temperature Range | 39°F to 80°F |
| Inlet (hot) Temperature Range | 120°F to 195°F |
| Inlet Connection Size | 1/2" |
| Max. Operating Pressure | 145 psi |
| Outlet Connection Size | 1/2" |
| Outlet Temperature Range | 95°F to 115°F |
| Seal Material | FKM |
| Standards | ASSE 1070, CSA B125.70, CUPC, NSF/ANSI/CAN 61-9 |
| Valve Type | Thermostatic |
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 14.13 |
| Ship length (cm) | 15.72 |
| Ship width (cm) | 15.72 |
| Country of Origin | TW |
| Product | Model | For Use With Grainger Item Number | For Use With Mfr. Model Number | Item | Price | |
|---|---|---|---|---|---|---|
 |
P6900-ADM-XL | 41J526, 41J525 | Z6913-XL | Mixing Valve | €199.00 | |
 |
P6900-MV-XL | 41J526, 41J525, 30PT27, 41J523, 41J524 | Z6913-XL-CP4-F, Z6913-XL-F,Z6920-XL, Z6915-Xl-F | Mixing Valve | €69.30 | |
 |
34-ZW1017XL2PEX1C | - | - | Mixing Valve | €148.10 | |
 |
34-ZW1017XLC | - | - | Mixing Valve | €216.71 | |
|
34-ZW1017XL | - | - | Mixing Valve | €216.71 | |
 |
12-ZW1070XLPEXF1960 | - | - | Thermostatic Mixing Valve | €196.02 | |
 |
12-ZW1070XLPF | - | - | Thermostatic Mixing Valve | €194.93 |
