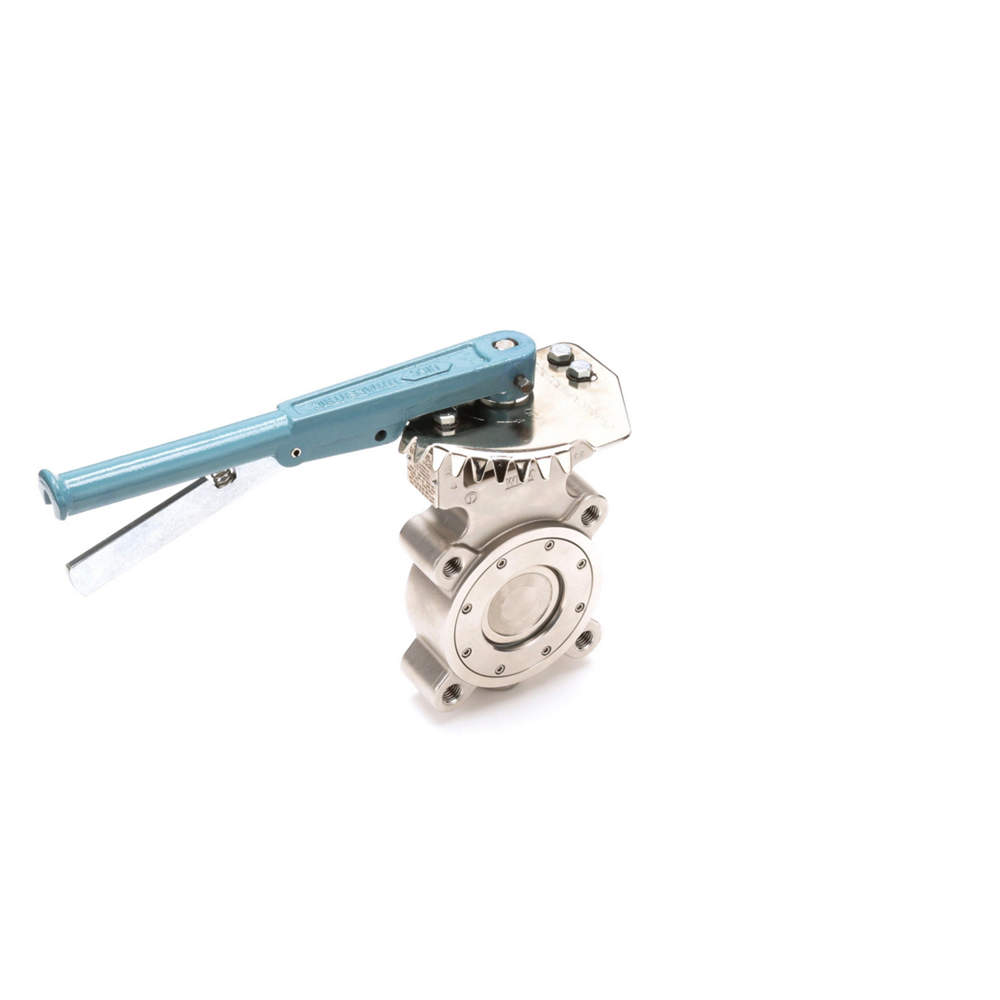

| Item | Butterfly Valve |
| Body Material | Stainless Steel |
| Bolt Circle Dia. | 6" |
| Disc Material | Stainless Steel |
| Grade | Grade A351 |
| Handle Type | Lever |
| Liner Material | PTFE |
| Lug Dia. | 7 1/4" |
| Max. Water Pressure | 150 psi |
| Number Of Bolt Holes | 4 |
| Pipe Size | 3" |
| Style | Lug |
| Temp. Range | -20°F to +500°F |
| 3-a Compliance | Not Rated |
| Ansi Flange Class | Class 150 |
| Bolt Holes | 4 |
| Connection Type | Lug |
| For Media | Gas, Oil, Slurry, Steam, Water |
| Lug Diameter | 7 1/4" |
| Max. Pressure (cwp) | 150 psi |
| Media Temp. Range | -20°F to 750°F |
| O-ring Material | MPTFE |
| Standards | API, ASME B16.34, ASME B16.5, CE, CE/PED, MSS SP-25, MSS SP-55, MSS SP-6, MSS SP-68, PI |
| Stem Material | Stainless Steel |
| Vacuum Service Rating | Not Rated |
| Valve Series | MB |
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 25.4 |
| HS code | 8481803075 |
| Country of Origin | US |
| Model | Body Material | Bolt Circle Dia. | Handle Type | Number Of Bolt Holes | Pipe Size | Style | Price | |
|---|---|---|---|---|---|---|---|---|
| 03-B5110-02-S02-11/HL | Carbon Steel A216 Gr.WCC | 6" | Lever | 4 | 3" | Wafer | - | RFQ
|
| 06-B5110-02-S02-11/HL | Carbon Steel A216 Gr.WCC | 9.5" | Lever | 8 | 6" | Wafer | - | RFQ
|
| 08-B5110-02-S02-11/HL | Carbon Steel A216 Gr.WCC | 11.75" | Gear Operated | 8 | 8" | Wafer | - | RFQ
|
| 10-B5110-02-S02-11/WG | Carbon Steel A216 Gr.WCC | 14.25" | Gear Operated | 12 | 10" | Wafer | - | RFQ
|
| 12-B5110-02-S02-11/WG | Carbon Steel A216 Gr.WCC | 17" | Gear Operated | 12 | 12" | Wafer | - | RFQ
|
| 04-B5123-02-S02-11/HL | Stainless Steel A351 Gr. CF8M | 7.5" | Lever | 8 | 4" | Lug | - | RFQ
|
| 06-B5123-02-S02-11/HL | Stainless Steel A351 Gr. CF8M | 9.5" | Lever | 8 | 6" | Lug | - | RFQ
|
