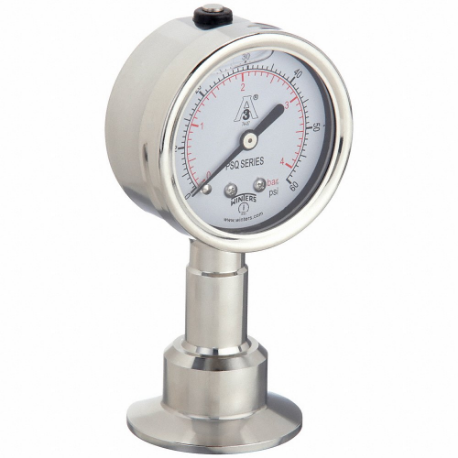

WINTERS INSTRUMENTS PSQ15803 Pressure Gauge, 0 To 60 PSI, 2 1/2 Inch Dial, 1 1/2 Inch Tri-Clamp, +/-1.50% Accuracy
Get it by Monday, Jun 16
€543.72 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% |
| Adjustable Pointer | Adjustable Micrometer Pointer |
| Ambient Temp. Range | +40°F to +150°F |
| Application | Beverage |
| Bezel Material | Stainless Steel |
| Bezel Material Grade | Grade 304 |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Depth | 32.4 mm |
| Case Dia. | 63.6 mm |
| Case Finish | Polished |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Air, Beverage, Dairy, Food, Gas, Liquid, Pasty Or Powdery Media |
| Connection Location | Bottom |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Features | 3-A Dairy Approved Materials, Electro Polished Finish |
| Field Fillable | Yes |
| For Use With | Media Compatible With 316L Stainless Steel |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1 1/2" |
| Gauge Connection Type | Triclamp |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Primary Range Units | Psi |
| Gauge Secondary Range Units | Bar |
| Gauge Special Options | Heavy Duty |
| Hazardous Location Rating | Not Rated |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | IP65, NEMA 4X |
| Lens Material | Polycarbonate |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Mfr. Series | PSQ Series |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 2 1/2" |
| Over-pressure Limit | 25% |
| Pointer Characteristics | Adjustable Micrometer Pointer |
| Pressure Gauge Type | Sanitary Pressure Gauge |
| Pressure Range | 0 psi to 60 psi |
| Pressure Range Type | Pressure |
| Primary Scale Minor Graduations | 5, 50 |
| Primary Scale Numeric Increments | 10, 100 |
| Primary Scale Units | Psi |
| Process Connection Location | Bottom |
| Process Connection Size | 1 1/2" |
| Process Connection Type | Tri Clamp |
| Process Temperature Range | 0°F to +250°F |
| Range | 0 psi to 60 psi |
| Removable Bezel | No |
| Secondary Pressure Range | 0 Bar to 4 Bar |
| Secondary Pressure Scale Color | Red |
| Secondary Scale Units | Bar |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Type | Bourdon Tube |
| Socket Grade | Grade 316 |
| Socket Material | Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Wetted Materials | Stainless Steel |
| Wetted Parts Grade | Grade 316 |
| Ambient Operating Temperature Range | 40°F to 150°F |
| Case Diameter | 63.6 mm |
| Includes Calibration Certificate | No |
| Ip/nema Rating | IP65, NEMA 4X |
| Manufacturer Warranty Length | 5 yrs. |
| Process Connection | 1 1/2" Tri Clamp |
| Series | PSQ Series |
| Standards | 3A 74-06 CERTIFIED, CRN REGISTERED, ROHS |
| Wetted Parts Material | 316 Stainless Steel |
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 3.24 |
| Ship length (cm) | 6.36 |
| Ship width (cm) | 6.36 |
| Country of Origin | CN |
