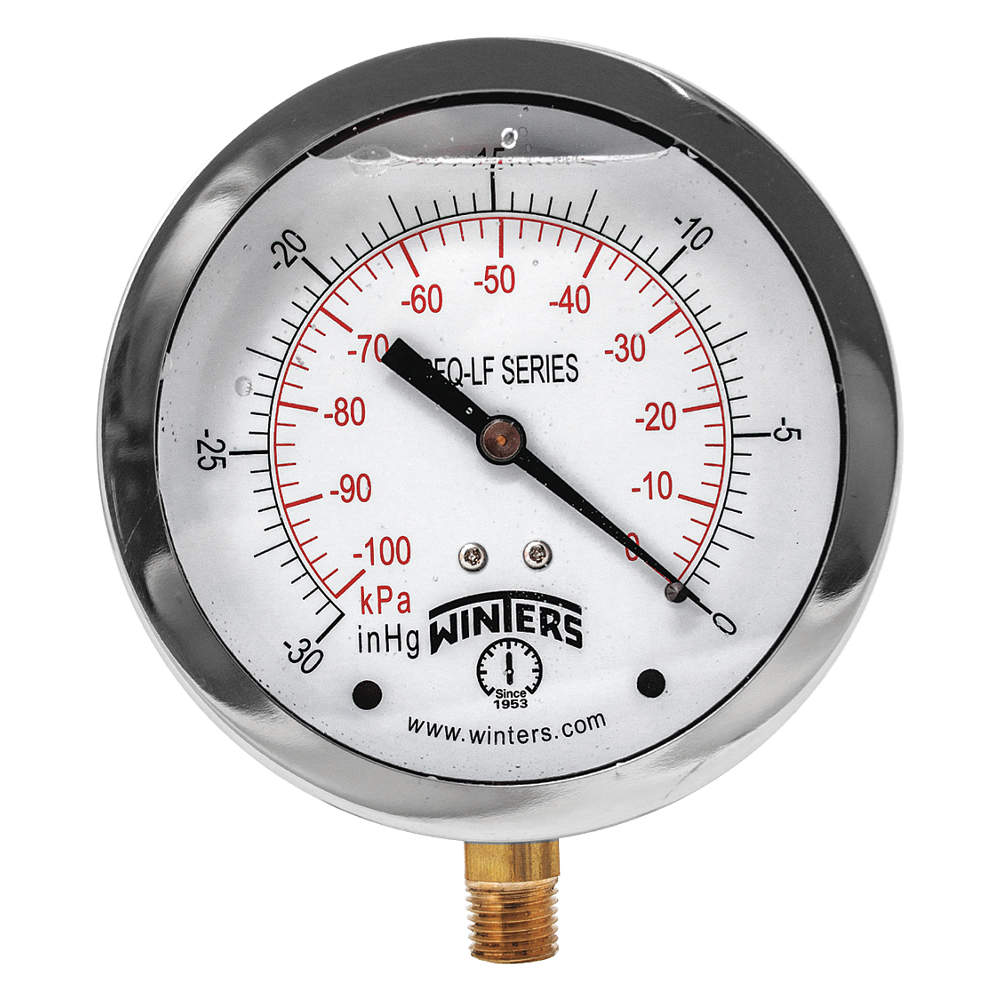

WINTERS INSTRUMENTS PFQ700LF Gauge Pressure 4 inch 30 inch Hg Vac to 0
Get it by Wednesday, Jun 18
€109.36 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Vacuum Gauge |
| Accuracy | -1.5% to +1.5% |
| Accuracy Scale | Full Scale |
| Application | Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Bezel Mounting Type | Crimped |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Metallic , Stainless Steel |
| Case Depth | 1.173" |
| Case Dia. | 3.917" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Bottom |
| Connection Size | 1/4" |
| Dial Face Material | Aluminum |
| Dial Size | 4" |
| Field Fillable | No |
| Filled With | Glycerin |
| For Use With | Ideal For Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 4" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | In Hg |
| Gauge Socket Material | Brass |
| Gauge Special Options | Restricted Orifice |
| Gauge Type | Restricted Orifice |
| Hazardous Location Rating | Not Rated |
| Includes Vent Plug | Yes |
| Lens Material | Plastic |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Mounting Hardware Included | No |
| Movement Material | Lead Free Brass |
| Nominal Dial Size | 4" |
| Non-sparking | No |
| Nsf Certified | Yes |
| Operating Temp. Range | -4°F to +150°F |
| Panel-mountable | No |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Vacuum Gauge |
| Pressure Range Type | Vacuum |
| Primary Application | Lead Free |
| Primary Scale Units | In Hg |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Range | 30 in. hg to 0 in. hg |
| Removable Bezel | Yes |
| Required Gauge Adapter | No |
| Scale Type | Dual |
| Secondary Scale Units | Kpa |
| Sensor Material | Bronze , Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass , Lead Free Brass |
| Wetted Materials | Brass, Bronze |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Bezel Gasket Material | Silicone |
| Bezel Material | 304 Stainless Steel |
| Case Construction | Welded Joint |
| Case Diameter | 3.917" |
| Compatible Process Media | Air, Water |
| Dial Color | White |
| Dry Dampening Feature | None |
| Gauge Case Material | 304 Stainless Steel |
| Gauge Wetted Parts | Brass, Bronze |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Ip/nema Rating | NEMA IP65 |
| Lens Material - Gauge | Plastic |
| Manufacturer Warranty Length | 5 yrs. |
| Mounting Type | Stem Mount |
| Pointer Color | Black |
| Pressure Gauge Type | Lead-Free Pressure Gauge |
| Pressure Range | 30 in. hg to 0 in. hg |
| Primary Pressure Range | 0 to 30 |
| Process Connection | 1/4" NPT Male |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Secondary Pressure Range | -101 to 0 |
| Series | PFQ-LF Series |
| Standards | ASME, CRN |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Lead Free Brass, Phosphor Bronze |
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.98 |
| Ship length (cm) | 9.95 |
| Ship width (cm) | 9.95 |
| Country of Origin | CN |
| Product | Model | Case Color | Case Material | Dial Size | Lens Material | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|
 |
PEM210LF | Black | Steel | 2.5" | Plastic | -40 Degrees to 150 Degrees F | €22.29 | |
 |
PEM220LF | Black | Steel | 4" | Glass | -40 Degrees to 150 Degrees F | €46.67 | |
 |
PEM135LF | Black | Steel | 2" | Plastic | -40 Degrees to 150 Degrees F | €17.51 | |
 |
PFQ801LF | Stainless Steel | Stainless Steel | 2.5" | Plastic | -4 Degrees to 150 Degrees F | €45.00 |
