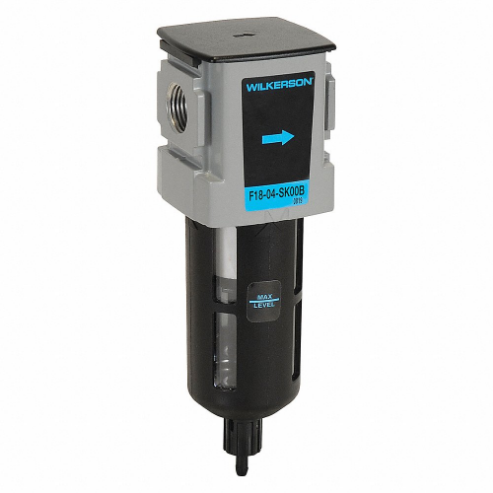

| Item | Compressed Air Filter |
| Body Material | Aluminum |
| Bowl Material | Plastic |
| Bowl Size | 1.7 oz. |
| Connection Size | 3/8" |
| Drain Included | Yes |
| Drain Port Size | 0.188" |
| Drain Type | Manual |
| Element Material | Sintered Polyethylene |
| Filter Bowl Guard Included | Yes |
| Filter Bowl Guard Material | Nylon |
| Filter Media | Polyethylene |
| Filter Rating | 5 µm |
| For Fluid Type | Water |
| For Removal Of | Particles, Water |
| For Substance Type | Water, Particulate Contamination |
| Gauge Included | No |
| Max. Flow | 130 CFM |
| Max. Inlet Pressure | 150 psi |
| Max. Temp. | 125°F |
| Modular Connection | Modular Connection |
| No. Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Overall Height | 7 1/2" |
| Overall Width | 2.37" |
| Seal Material | Nitrile |
| Size - Air Treatment | Compact |
| System Location | Air Line |
| Air Inlet Size | 3/8" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/8" |
| Air Outlet Type | NPT |
| Connection Style | Air Line |
| Filter Bowl Capacity | 1.7 oz. |
| Filter Bowl Material | Polycarbonate |
| Filter Element Material | Sintered Polyethylene |
| Filter Type | Particulate |
| Iso Class | Class 3 |
| Maximum Flow Rate | 82 CFM |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 125°F |
| Minimum Operating Temperature | -13°F |
| Number Of Air Inlets | 1 |
| Overall Depth | 2 3/8" |
| Pressure Drop | 4.9 psig |
| Series | F18 Series |
| Standards | ISO |
| Weight | 0.62 lbs. |
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 6.03 |
| Ship width (cm) | 6.03 |
| Country of Origin | CN |
| Product | Model | Bowl Material | Bowl Size | Connection Size | Filter Media | Filter Rating | Housing Material | Max. Flow | Max. Inlet Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SF1-02-SYV0 | Stainless Steel | 1 oz. | - | Polyethylene | 5 micron | Stainless Steel | 23 cfm | - | €555.09 | |
 |
SF2-04-SYV0 | Stainless Steel | 1.7 oz. | - | Polyethylene | 5 micron | Stainless Steel | 70 cfm | - | €966.53 |
