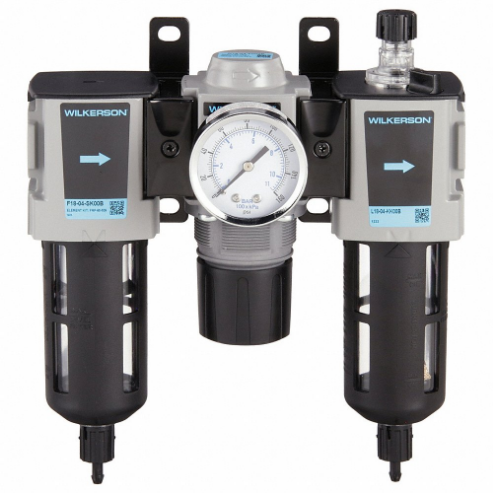

| Item | Filter/Regulator/Lubricator |
| Adjustable Pressure Range | 0 psi to 125 psi |
| Adjustment Range | 0 psi to 125 psi |
| Bowl Size | 4.1 oz. |
| Connection Size | 1/2" |
| Drain Type | Manual |
| Filter Rating | 5 µm |
| Max. Flow | 85 CFM |
| Max. Inlet Pressure | 150 psi |
| Max. Temp. | 125°F |
| Number Of Pieces | 3 |
| Overall Height | 9" |
| Overall Width | 7 3/4" |
| Pipe Length | 100 ft. |
| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Acetal |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1/2" |
| Air Outlet Type | NPT |
| Body Material | Aluminum |
| Drain Included | Yes |
| Filter Bowl Capacity | 4.1 oz. |
| Filter Bowl Guard Included | Yes |
| Filter Bowl Guard Material | Polycarbonate |
| Filter Bowl Material | Polycarbonate |
| Filter Element Material | Polyethylene |
| For Fluid Type | Oil |
| For Maximum Pipe Run | 100 ft. |
| For Substance Type | Air |
| Includes | Guard, Modular T-Bracket/Joiner Assembly, Pressure Gauge |
| Iso Class | Class 3 |
| Lubricator Bowl Capacity | 4.1 oz. |
| Lubricator Bowl Guard Included | Yes |
| Lubricator Bowl Guard Material | Polycarbonate |
| Lubricator Bowl Material | Polycarbonate |
| Lubricator Type | Micro Mist |
| Maximum Flow Rate | 85 CFM |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 125°F |
| Minimum Operating Temperature | -13°F |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Oil Capacity | 4.1 oz. |
| Overall Depth | 4 5/16" |
| Pressure Control Type | Relieving |
| Pressure Drop | 14.5 psig |
| Pressure Gauge Included | Yes |
| Pressure Gauge Port Size | 1/4" |
| Pressure Gauge Port Type | NPT |
| Seal Material | Nitrile |
| Series | C18 Series |
| Sight Dome Included | Yes |
| Standards | ISO |
| Weight | 4.04 lbs. |
| Ship weight (kg) | 2.05 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 10.95 |
| Ship width (cm) | 19.84 |
| Country of Origin | US |
