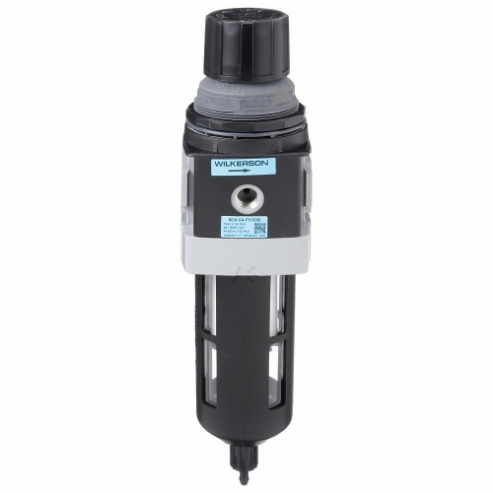

| Item | Filter/Regulator |
| Adjustable Pressure Range | 0 psi to 125 psi |
| Adjustment Range | 0 psi to 125 psi |
| Bowl Size | 3 oz. |
| Connection Size | 1/2" |
| Drain Type | Manual |
| Filter Rating | 5 µm |
| Max. Flow Rate | 260 CFM |
| Max. Inlet Pressure | 150 psi |
| Max. Temp. | 125°F |
| Overall Height | 11 1/4" |
| Overall Width | 2.87" |
| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Acetal |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1/2" |
| Air Outlet Type | NPT |
| Body Material | Aluminum |
| Connection Style | Air Line |
| Differential Pressure Indicator Included | Yes |
| Drain Included | Yes |
| Drain Part Compatbility | GRP-96-642 |
| Filter Bowl Capacity | 2.87 oz. |
| Filter Bowl Guard Included | Yes |
| Filter Bowl Material | Plastic |
| Filter Element Material | Polyethylene |
| Filter Type | Particulate |
| For Fluid Type | Particles, Water |
| For Substance Type | Particles, Water |
| Includes | Panel Nut |
| Iso Class | Class 6 |
| Maximum Flow Rate | 200 CFM |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 125°F |
| Maximum Regulated Pressure | 125 psi |
| Minimum Operating Temperature | -13°F |
| Minimum Regulated Pressure | 0 psi |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Overall Depth | 2 1/4" |
| Pressure Control Type | Relieving |
| Pressure Drop | 14.5 psi |
| Pressure Gauge Included | No |
| Pressure Gauge Port Size | 1/4" |
| Seal Material | Nitrile |
| Series | B28 Series |
| Standards | ISO 8573-1: 1991 CLASS 3, ISO 8573-1: 2001 CLASS 6, ISO CLASS 3 |
| Weight | 1.87 lbs. |
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 28.58 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 7.3 |
| Country of Origin | US |
| Product | Model | Adjustment Range | Bowl Material | Bowl Size | Connection Size | Max. Flow | Max. Inlet Pressure | Max. Pressure | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SB1-02-LYSS | 0 to 125 psi | Stainless Steel | 1.0 oz. | - | 12 cfm | - | 300 psi | 150 Degrees F | €715.21 | |
|
SB1-02-KYSS | 0 to 60 psi | Stainless Steel | 1.0 oz. | - | 12 cfm | - | 300 psi | 150 Degrees F | €696.91 | |
 |
SB2-04-LYSS | 0 to 125 psi | Stainless Steel | 4.0 oz. | - | 72 cfm | - | 300 psi | 150 Degrees F | €1,623.55 | |
|
SB2-04-KYSS | 0 to 60 psi | Stainless Steel | 4.0 oz. | - | 72 cfm | - | 300 psi | 150 Degrees F | €1,752.19 | |
 |
BB3-02-FK00 | 5 to 125 psi | Polycarbonate | 0.4 oz. | - | 16 cfm | - | 150 psi | 125 Degrees F | €69.96 | |
 |
CB6-04-F00 | - | - | - | - | - | - | - | - | €419.27 |
