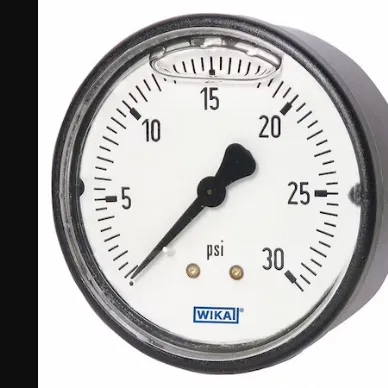

| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Scale | Mid Scale |
| Case Construction | Welded Joint |
| Case Material | Plastic |
| Dial Color | White |
| Includes Mounting Hardware | No |
| Includes Vent Plug | Yes |
| Pressure Range | 0 psi to 200 psi |
| Primary Scale Minor Graduations | 5 |
| Primary Scale Numeric Increments | 20.0 |
| Secondary Pressure Range | 0 kPa to 1400 kPa |
| Secondary Scale Units | Kpa |
| Accuracy Grade | ASME B40.100 Grade B |
| Ambient Operating Temperature Range | -4°F to +140°F (-20°C to +60°C) |
| Application | Compressors, Hydraulics, Marine, Pumps |
| Blowout Safety Back | No |
| Case Color | Black |
| Case Depth | 29 mm |
| Case Diameter | 51 mm |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Liquids And Gases |
| Dial Face Material | ABS |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | General Purpose Case |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | ABS |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes | Vent Plug |
| Includes Calibration Certificate | No |
| Ip/nema Rating | NEMA IP65 |
| Lens Material | Plastic |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | Yes |
| Manufacturer Warranty Length | 1 yr. |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | ABS |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range (secondary) | 0 psi to 200 psi |
| Pressure Range Type | Pressure |
| Primary Graduations | 20/20 |
| Primary Pressure Range | 0 to 200 |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Scale Type | Dual |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Series | 113.13 Series |
| Socket Material | Brass |
| Standards | EN 837-1 |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Brass, Bronze |
| Ship weight (kg) | 0.14 |
| Model | Item | Price | |
|---|---|---|---|
| 113.13.15.3030.B | Compound Gauge | €33.97 | |
| 113.13.25.3030.L | Compound Gauge | €34.39 | |
| 113.13.20.3030.B | Compound Gauge | €36.22 | |
| 113.13.20.3030.L | Compound Gauge | €56.37 | |
| 113.13.15.1000.B | Pressure Gauge | €33.97 | |
| 113.13.15.1000.B | Pressure Gauge | €33.97 | |
| 113.13.25.1000.L | Pressure Gauge | €34.39 |
