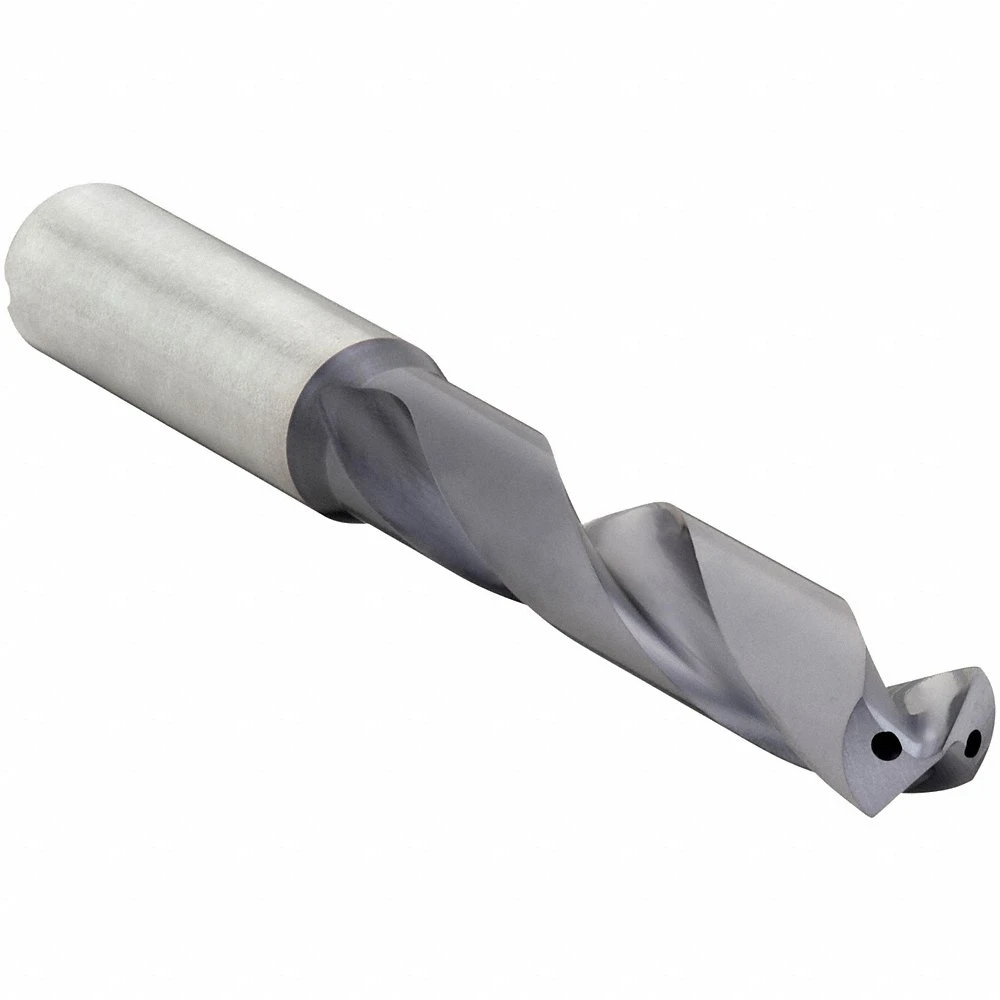

| Item | Jobber Length Drill Bit |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5625 |
| Depth X Dia. Ratio | 5xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Carbide |
| Drill Diameter Tolerance | H7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.097" |
| Finish | Titanium Aluminum Nitride Coat |
| Flute Length | 3 1/4" |
| Flute Type | Helical |
| Grade | Grade WU25PD |
| List Number | 402 |
| Material | Carbide |
| Max. Drilling Depth | 2.469" |
| Mfr. Series | VDS402 Series |
| No. Of Pieces | 1 |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 5.219" |
| Point Angle | 140° |
| Point Type | Conical Point |
| Primary Material Application | Aluminum, Cast Iron, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | K, M, N, P, S |
| Shank Dia. | 5/8" |
| Shank Length | 1 7/8" |
| Shank Type | Straight |
| Sheeter Drill | No |
| Size | 0.562" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch , Imperial |
| Depth:dia. Ratio | 5xD |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | Conical Point |
| Drill Bit Size | 9/16" |
| Finish - Machining | TiAlN |
| Helix Angle | 27° |
| Material - Machining | Carbide |
| Material Grade - Machining | Grade WU25PD |
| Maximum Drilling Depth | 2 15/32" |
| Measurement System | Fractional Inch |
| Series | VDS402 Series |
| Shank Diameter | 5/8" |
| Shank Type - Machining | Straight |
| Standards | ANSI, DIN 6535, DIN 6537, ISO |
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.26 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
4158001 | €109.89 | |
 |
4157025 | €208.12 | |
 |
TDS412A04852 | €126.95 | |
 |
VDS402A04852 | €109.99 | |
 |
4143779 | €175.78 | |
|
TDS413A04800 | €198.00 | |
|
TDS403A04800 | €194.51 |
