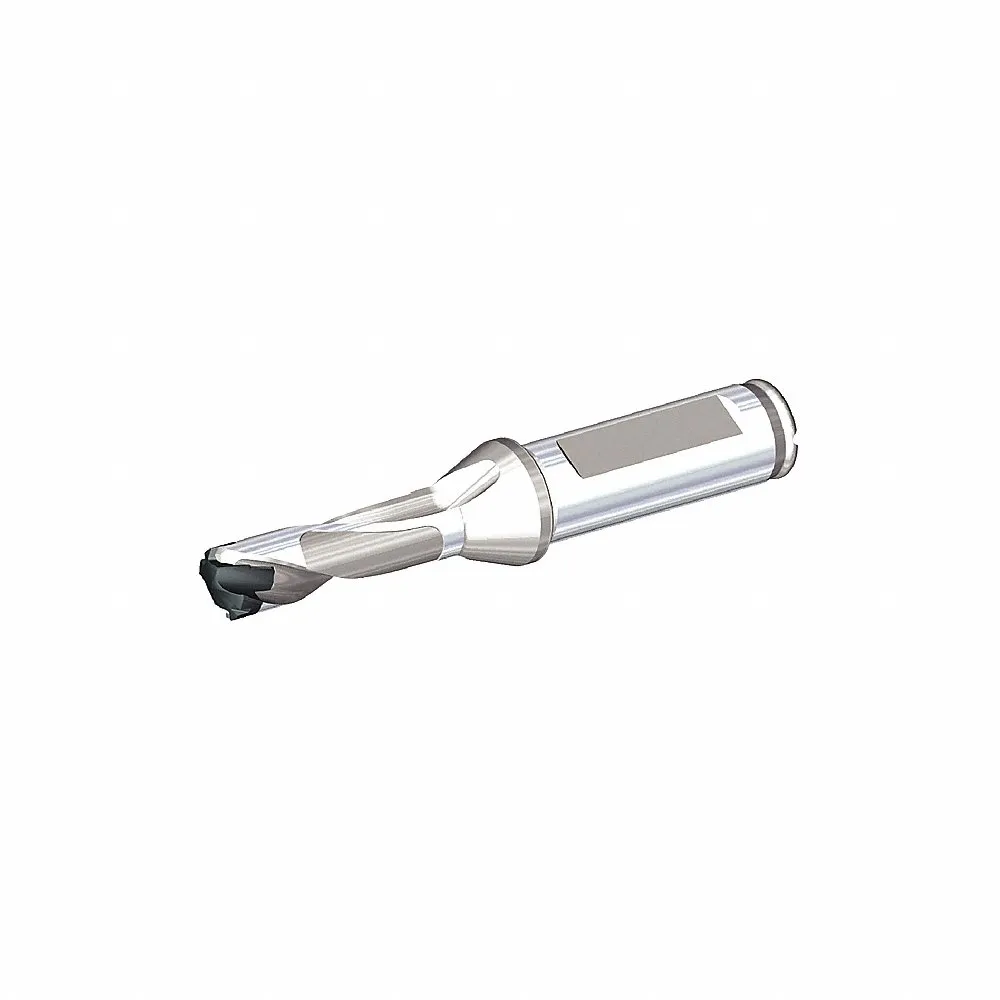

| Item | Exchangeable Drill Tip |
| Ansi Code | TDM0374R3SCF050 |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Depth X Dia. Ratio | 3xd |
| Flanged Shank | Yes |
| Flute Length | 42.13 mm |
| Flute Type | Spiral |
| Includes | Insert Wrench |
| Insert Style | TDM1 |
| Material | High Speed Steel |
| Max. Drilling Depth | 9.99 mm |
| Min. Drill Dia. | 9.5 mm |
| Seat Size | W13 |
| Shank Dia. | 1/2" |
| Shank Dia. Measurement System | Fractional Inch |
| Shank Type | Straight With Three Flats |
| Spiral Direction | Right Hand |
| Toolholder Style | TDM |
| Iso Number | TDM0374R3SCF050 |
| Material - Machining | High Speed Steel |
| Shank Length | 1.7717" |
| Shank Type - Machining | Straight with Three Flats |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
TDMX0749R3SL100 | €486.68 | |
|
TDMX0788R3SL100 | €486.68 | |
 |
TDMX0749R5SL100 | €559.32 | |
|
TDM0787R3SCF100 | €518.92 | RFQ
|
 |
4099051 | €589.87 | |
 |
TDMX0788R8SL100 | €646.48 | |
|
TDM0827R3SCF100 | €593.64 | RFQ
|
