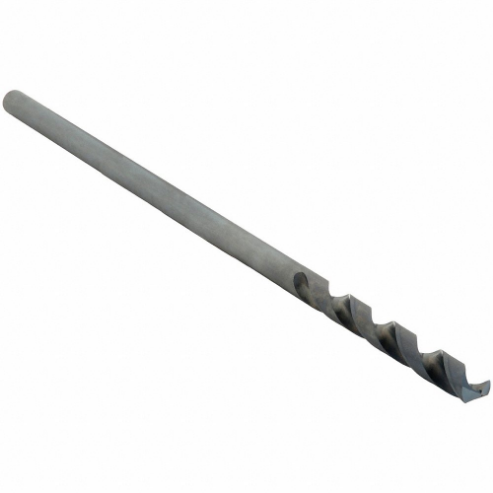

| Item | Aircraft Extension Drill |
| Aircraft Drill | Yes |
| Application | Tool Steels, Carbon Steel, Plastic, Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.344" |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Material | High Speed Steel |
| Drill Length Class | Jobber Length |
| Drill Point | 135° |
| Finish | Black Oxide |
| Flute Length | 3.437" |
| Flute Type | Spiral |
| Fractional Size | 11/32" |
| Grade | Heavy Duty , High Performance |
| List Number | 907 |
| Material | High Speed Steel |
| Material Grade | Heavy Duty |
| No. Of Pieces | 1 |
| Number Of Pieces | 1 |
| Overall Length | 12" |
| Point Angle | 135° |
| Point Type | Split Point |
| Shank Dia. | 0.344" |
| Size | 11/32" |
| System Of Measurement | Fractional Inch |
| Type | Aircraft |
| Depth:dia. Ratio | 4xD |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 11/32" |
| Finish - Machining | Black Oxide |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | High Performance |
| Maximum Drilling Depth | 3 7/16" |
| Measurement System | Fractional Inch |
| Number Of Flutes | 2 |
| Shank Type - Machining | Straight |
| Standards | NOT RATED |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 3.05 |
| HS code | 8207502055 |
| Country of Origin | CN |
| Product | Model | Decimal Equivalent | Flute Length | Fractional Size | List Number | Overall Length | Shank Dia. | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
5TVH8 | 0.0625 | 7/8" | 1/16" | 502 | 6" | 1/16" | 1/16" | €5.66 | |
 |
5TVH9 | 0.0938 | 1.25" | 3/32" | 502 | 6" | 3/32" | 3/32" | €5.32 | |
|
5TVJ0 | 0.1250 | 1.625" | 1/8" | 502 | 6" | 1/8" | 1/8" | €5.39 | |
|
5TVJ2 | 0.1875 | 2 5/16" | 3/16" | 502 | 6" | 3/16" | 3/16" | €6.95 | |
 |
5TVJ3 | 0.2188 | 2.5" | 7/32" | 502 | 6" | 7/32" | 7/32" | €6.15 | |
 |
5TVJ4 | 0.2500 | 2.75" | 1/4" | 912CAT | 6" | - | - | €7.92 | |
 |
5TVJ5 | 0.2812 | 2 15/16" | 9/32" | 912CAT | 6" | 9/32" | 9/32" | €8.89 |
