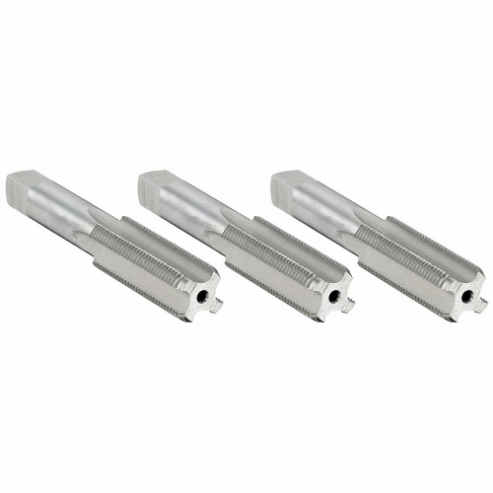

| Item | Hand Tap Set |
| Finish | None |
| Flutes | 4 |
| Material | High Speed Steel |
| No. Of Pieces | 3 |
| Number Of Pieces | 3 |
| Overall Length | 2.719" |
| Pitch | 18 |
| Pitch Dia. Limits | H3 |
| Shank Dia. | 5/16" |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Bottoming, Plug, Taper |
| Tap Grouping | Tap Set |
| Tap Style | General Purpose |
| Thread Direction | Right Hand |
| Thread Length | 1 1/8" |
| Thread Type | Coarse |
| Threads Per Inch | 18.0 |
| Type | Fractional |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 10.16 |
| HS code | 8207403000 |
| Country of Origin | CN |
| Model | Dimension Type | Flutes | Number Of Flutes | Overall Length | Pitch | Pitch Diameter Limits | Shank Dia. | Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5PXJ9 | Machine Screw | 3 | 3 | 2" | 32 | H3 | 0.141" | #6 | 3 | €37.48 | |
| 5PXK0 | - | 4 | - | 2.125" | 32 | H3 | - | #8 | 3 | €41.37 | |
| 5PXK1 | Machine Screw | 4 | 4 | 2.375" | 24 | H3 | 0.194" | #10 | 3 | €69.87 | |
| 5PXK2 | Machine Screw | 4 | 4 | 2.375" | 32 | H3 | 0.194" | #10 | 3 | €40.28 | |
| 5PXK3 | Fractional | 4 | 4 | 2.5" | 20 | H3 | 0.255" | 1/4" | 3 | €21.03 | |
| 5PXK7 | Fractional | 4 | 4 | 2 15/16" | 16 | H3 | 0.381" | 3/8" | 3 | €58.93 | |
| 5PXK9 | Fractional | 4 | 4 | 3.156" | 14 | H3 | 0.323" | 7/16" | 3 | €49.22 |
