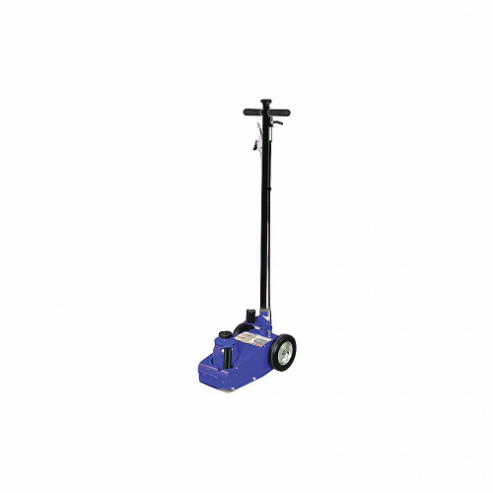

WESTWARD 3W929 Truck Jack
Get it by Monday, Jun 16
€809.13 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Service Jack |
| Application | General |
| Body Material | Steel |
| Chassis Length | 21 1/2" |
| For Lifting | Construction Vehicle, Low Clearance Bus |
| For Vehicle Type | Trucks |
| Handle Length | 41 1/2" , 47 3/8" |
| Lifting Actuator | Pneumatic |
| Lifting Capacity | 22 ton. |
| Lifting Height Max. | 10 1/4" |
| Lifting Height Min. | 19 5/8" |
| Material | Steel |
| Maximum Lift Height | 19 1/4" |
| Minimum Lift Height | 9 3/4" |
| Operation Type | Air |
| Power Raise | 9 1/2" |
| Power Source | Air |
| Saddle Length | 21 1/2" |
| Features | After Lifting, Loads Must Be Immediately Supported By Appropriate Mechanical Means Such As Vehicle Stands., Features A Powerful Air Motor And Stamped Steel Frame Construction With Steel Base |
| Jack Type | Axle Jack |
| Load Capacity | 22 ton. |
| Maximum Lift | 19 1/4" |
| Minimum Lift | 9 3/4" |
| Standards | ASME PASE |
| Ship weight (kg) | 35.26 |
| Ship height (cm) | 28.7 |
| Ship length (cm) | 59.18 |
| Ship width (cm) | 34.54 |
| HS code | 8425490000 |
| Country of Origin | US |
| Product | Model | Base Length | Base Width | Caster Wheel Dia. | Chassis Length | Handle Length | Lifting Capacity | Lifting Height Max. | Lifting Height Min. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
13X030 | - | - | - | 22" | 47.375" | 22 ton. | 8.5" | 22" | €1,154.92 | |
 |
13X031 | - | - | - | 22" | 40.875" | 30 ton. | 11" | 18" | €1,405.35 | |
 |
13X032 | 29.375" | 14.875" | 2.25" | 30.875" | 49.875" | 3-1/2 ton. | 4" | 17" | €532.75 | |
 |
1ZKX5 | - | - | 3.875" | 55" | 40.625" | 10 ton. | - | - | €4,030.57 | RFQ
|
 |
1ZKX6 | - | - | 2.25" | 55.625" | 40.625" | 5 ton. | - | - | €1,105.67 | |
 |
1ZKX9 | - | - | 3.875" | 55" | 42.125" | 10 ton. | - | - | €1,852.70 | RFQ
|
 |
5M456 | - | - | - | 55.625" | 42.125" | 5 ton. | - | - | €1,372.58 |
