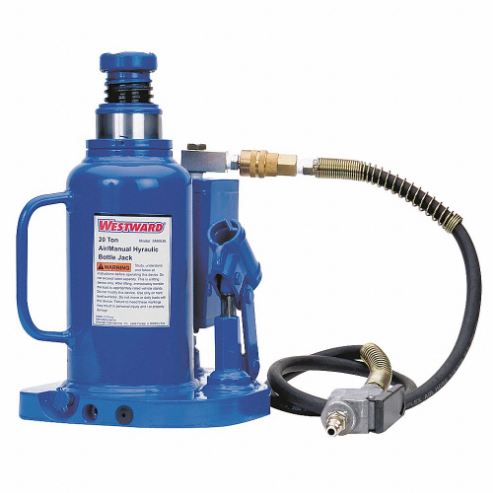

WESTWARD 1ZKX8 Bottle Jack 20 Ton 9 3/4-18 3/4 Inch Lift
Get it by Monday, Jun 16
€661.88 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Bottle Jack |
| Base Length | 8 1/2" |
| Base Width | 7 1/4" |
| Body Finish | Baked Enamel |
| Body Material | Steel |
| Construction | Steel |
| Finish | Durable Baked Enamel |
| Handle Length | 23 1/2" |
| Hydraulic Stroke | 5" |
| Jack Type | Bottle Jack |
| Lifting Actuator | Manual Handle |
| Lifting Capacity | 20 ton. |
| Lifting Height Max. | 18 3/4" |
| Material | Steel |
| Max. Lift Height | 18 3/4" |
| Min. Height | 9 3/4" |
| Min. Lifting Height | 9 3/4" |
| Power Source | Air, Mechanical |
| Stroke | 5" |
| Type | Air, Manual |
| Body Material Finish | Baked Enamel |
| Extension Screw Length | 4" |
| Features | Internally Protected From Overjumping and Overloading, Pump Positioned Directly Below The Reservoir |
| Load Capacity | 20 ton. |
| Maximum Lift | 18 3/4" |
| Maximum Operating Pressure | 175 psi |
| Minimum Height | 9 3/4" |
| Minimum Lift | 9 3/4" |
| Minimum Operating Pressure | 110 psi |
| Standards | ASME PASE |
| Work Orientation | Horizontal, Vertical |
| Ship weight (kg) | 17.73 |
| Ship height (cm) | 28.7 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 23.37 |
| HS code | 8425490000 |
| Country of Origin | US |
| Product | Model | Base Size | Hydraulic Stroke | Lifting Capacity | Lifting Height Max. | Lifting Height Min. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
1ZKX7 | 8" x 6-1/2" | 5.5" | 12 ton. | 18.5" | 9.5" | €532.22 |
