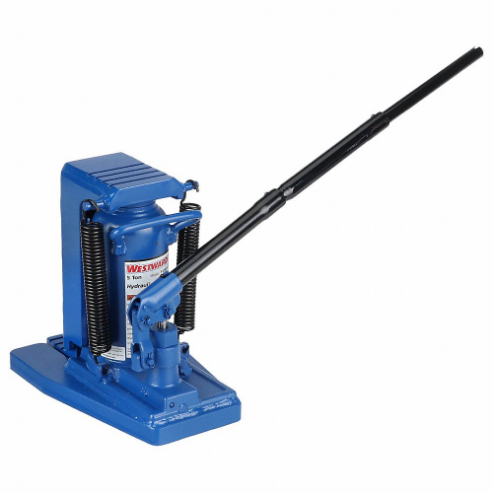

WESTWARD 1VW31 Jack Toe 5 Ton
Get it by Tuesday, Jun 17
€2,061.33 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Toe Jack |
| Base | Welded |
| Base Length | 11" |
| Base Material | Welded |
| Base Width | 7 1/2" |
| Body Material | Steel |
| Cylinder | Chrome Medium Carbon Steel |
| Features | Designed To Be Used Vertically, Low Ground Clearance |
| Handle Length | 23 5/8" |
| Jack Type | Toe Jack |
| Lifting Actuator | Manual Handle |
| Lifting Capacity | 5 ton. |
| Lifting Height Max. | 5 3/4" |
| Lifting Height Min. | 7/8" |
| Max. Height | 5 3/4" |
| Max. Lift Height | 5 3/4" |
| Power Source | Mechanical |
| Load Capacity | 4535.93 Kg |
| Maximum Lift | 5 3/4" |
| Minimum Lift | 7/8" |
| Standards | ASME PASE |
| Toe Height | 5 3/4" |
| Ship weight (kg) | 27 |
| Ship height (cm) | 33.53 |
| Ship length (cm) | 30.99 |
| Ship width (cm) | 29.72 |
| HS code | 8425420000 |
| Country of Origin | TW |
| Product | Model | Base Size | Cylinder | Lifting Capacity | Lifting Height Max. | Lifting Height Min. | Max. Height | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
1AVP7 | 11-5/8 x 9-1/4" | Chromed Medium Carbon Steel | 10 ton. | 6.25" | 1.125" | 6.25" | €2,827.10 |
