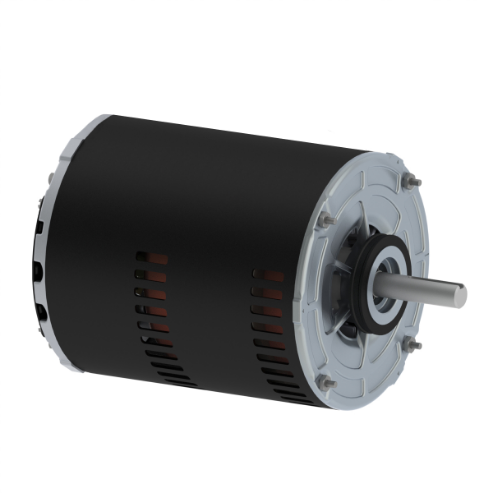

| Item | Evaporative Cooler Motor |
| Bearing Type | Ball |
| Body Dia. | 6 7/16" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Dia. | 6 7/16" |
| Diameter | 6 7/16" |
| Duty Cycle | Continuous |
| Enclosure Type | Open Dripproof |
| Features | Epoxy Paint Over A Layer Of Zinc Phosphate Helps Prevent Corrosion |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10.3A |
| Hp | 3/4 hp, 1/4 hp |
| Insulation Class | Class B |
| Length | 9 9/16" |
| Length Less Shaft | 7 7/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Ring |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Evaporator Cooler |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Ring |
| No. Of Speeds | 2 |
| Nominal Efficiency | 61.1% |
| Number Of Speeds | 2 |
| Output Wattage | 550 W |
| Overall Length | 9 9/16" |
| Phase | 1 |
| Removable Base | Yes |
| Resilient Ring Dia. | 2 1/2" |
| Ring Dia. | 2 1/2" |
| Ring To Ring Center | 7 7/16" |
| Rpm | 1725/1140 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Motor Design | Capacitor Start |
| Nameplate Rpm | 1725/1140 RPM |
| Standards | UL RECOGNIZED FOR US AND CANADA |
| Weight | 24.3 lbs. |
| Ship weight (kg) | 8.87 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 24.29 |
| Ship width (cm) | 17.78 |
| HS code | 8501514040 |
| Country of Origin | BR |
| Model | Full Load Amps | HP | Length Less Shaft | Motor Design | Motor Type | Nameplate RPM | Number of Speeds | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| .3382OS1AEC56 | 6.6/3.7 | 1/3, 1/9 | 7.875" | Split-Phase | Split-Phase | 1725/1140 | 2 | 9 9/16" | €211.74 | |
| .5082OS1AEC56 | 8.2/4.6 | 1/2, 1/6 | 7.875" | Split-Phase | Split-Phase | 1725/1140 | 2 | 9 9/16" | €239.07 | |
| 00182OS1AEC56 | 12.1/7.1 | 1, 1/3 | 8 21/25" | - | Capacitor-Start | 1725/1140 | 2 | 10 24/25" | €372.79 | |
| .5082OS1DEC56 | 4.8/2.1 | 1/2, 1/6 | 7.875" | Split-Phase | Split-Phase | 1725/1140 | 2 | 9 9/16" | €259.68 | |
| .7582OS1DEC56 | 5.5/2.6 | 3/4, 1/4 | 7.875" | Capacitor-Start | Capacitor-Start | 1725/1140 | 2 | 9 9/16" | €307.05 | |
| 00182OS1DEC56 | 6.45/3.06 | 1, 1/3 | 8 21/25" | Capacitor-Start | Capacitor-Start | 1725/1140 | 2 | 10 24/25" | €418.55 | |
| .5018OS1DEC56 | 4.8 | 1/2 | 7.875" | Split-Phase | Split-Phase | 1725 | 1 | 9 9/16" | €232.46 |
