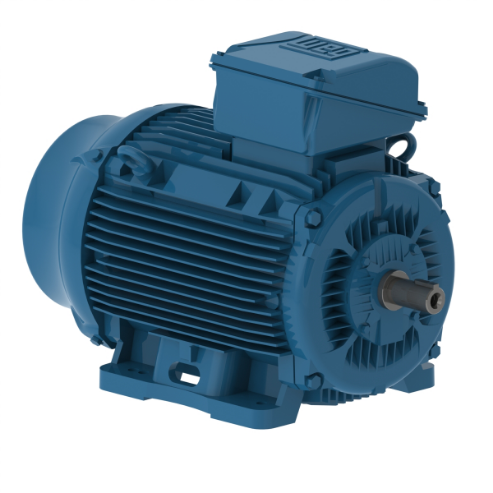

WEG 20036ET3E447TSF3-W22 13676908 Electric Motor, 200Hp, 60Hz, 3600 Rpm
Get it by Tuesday, Jun 17
€24,026.31 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 229% |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 12 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 90% |
| Efficiency At 50 % | 86% |
| Efficiency At 75 % | 89% |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 445/7TS |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Grounding Lugs | Double |
| Hot Locked Rotor Time | 14 sec. |
| Impregnation Method | Constant Resin Flow |
| L. R. Amps | 2847/1424A |
| Locked Rotor Torque | 210% |
| Lrc | 6.5X(Code G) |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 44.7 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3570 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 90/45A |
| No. Of Holes | 2 |
| No. Of Poles | 2 |
| Noise Level | 81 dBA |
| Output | 200 hp |
| Output Rating | 200 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Power Factor At 1 % | 95.4 |
| Power Factor At 50 % | 95 |
| Power Factor At 75 % | 95.4 |
| Rated Current | 438/219A |
| Rated Torque | 294 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Regreasing System | At Drive End And Non Drive End |
| Rotation | Clockwise/Counter Clockwise |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 0.83% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Top |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V AC |
| Ship weight (kg) | 820.8 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
