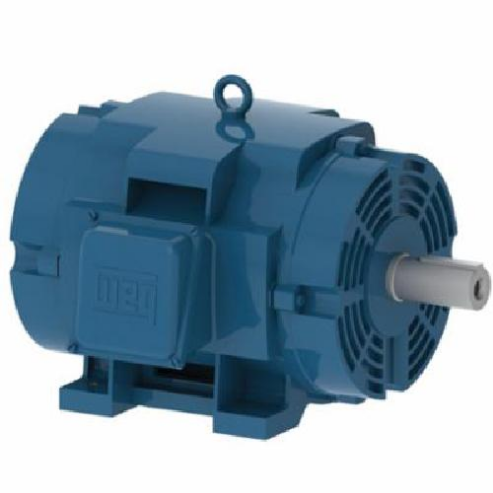

| Item | General Purpose Motor |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency Group | NEMA Premium(R) |
| Frame | 404T |
| Frame Material | Cast Iron |
| Full Load Amps | 254-230/115 |
| Green Certification or Other Recognition | NEMA Premium Rated |
| HP | 100 |
| Hz | 60 |
| Insulation Class | F |
| Length Less Shaft | 26.875" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Base |
| Nameplate RPM | 1780 |
| Nominal Efficiency | 95.4% |
| Number of Speeds | 1 |
| Overall Length | 34.125" |
| Phase | 3 |
| Rotation | CW/CCW |
| RPM Group | 1701-1800 |
| RPM Range | 1701-1800 |
| Service Factor | 1.15 |
| Shaft Dia. | 2.875" |
| Shaft Length | 7.25" |
| Voltage | 208-230/460 |
| Warranty | 3 Years |
| Ship weight (kg) | 481.05 |
| Ship height (cm) | 72.2 |
| Ship length (cm) | 100 |
| Ship width (cm) | 82.2 |
| HS code | 8501528040 |
| Country of Origin | BR |
| Model | Shaft Length | Nominal Efficiency | Frame | HP | Hz | Length Less Shaft | Mounting | Nameplate RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3H254TC | 4" | 93.0% | 254TC | 15 | 50/60 | 16 11/16" | Rigid Base | 1775 | €1,931.87 | |
| 02018OT3E256TC | 4" | 93.0% | 256TC | 20 | 50/60 | 18.375" | Rigid Base | 1800 | €2,304.88 | |
| 02018OT3H256TC | 4" | 93.0% | 256TC | 20 | 50/60 | 18.375" | Rigid Base | 1770 | €2,466.50 | |
| 02518OT3E284TC | 4.625" | 93.6% | 284TC | 25 | 50/60 | 18.75" | Rigid Base | 1800 | €2,970.17 | |
| 02518OT3H284TC | 4.625" | 93.6% | 284TC | 25 | 50/60 | 18.75" | Rigid Base | 1170 | €3,298.48 | |
| 03018OT3E286TC | 4.625" | 94.1% | 286TC | 30 | 50/60 | 20.25" | Rigid Base | 1800 | €3,449.01 | |
| 03018OT3H286TC | 4.625" | 94.1% | 286TC | 30 | 50/60 | 20.25" | Rigid Base | 1170 | €3,819.52 |
