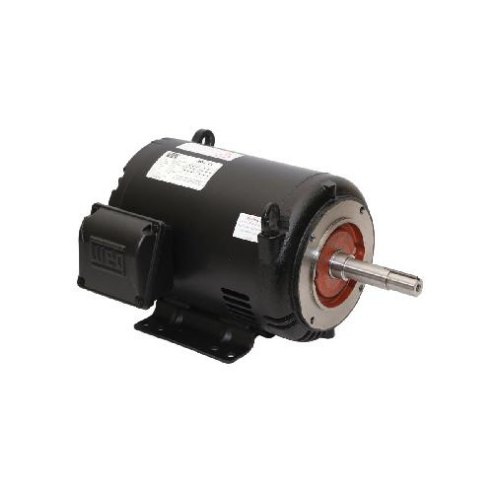

WEG 05036OT3E324JP Pump Motor, 3 Phase, 50Hp, 3555 208-230/460V, 324jp
Get it by Wednesday, Jun 18
€6,651.43 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Close-Coupled Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 17 4/5" |
| Bolt Circle Dia. | 11" |
| Cc Number | CC029A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 93% |
| Efficiency Group | Premium |
| Frame Material | Cast Iron |
| Frame Type | 324JP |
| Frequency | 60 Hz |
| Full Load Amps | 106.2-118.2/59.1A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Hp | 50 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 1000:1 |
| Max. Ambient Temp. | 40°C |
| Motor Application | Close Coupled Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | JP Threaded |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 3560 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Overall Height | 17 3/4" |
| Overall Length | 28 15/16" |
| Phase | 3 |
| Regreasable Bearings | Yes |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 1 1/4" |
| Shaft Length | 8 1/8" |
| Shaft Material | Carbon Steel |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Warranty | 3 yrs. |
| Ship weight (kg) | 237.15 |
| Ship height (cm) | 49.2 |
| Ship length (cm) | 97.99 |
| Ship width (cm) | 63.2 |
| HS code | 8501528040 |
| Country of Origin | BR |
| Model | Frame | Full Load Amps | HP | Inverter Rated | Length Less Shaft | Motor Shaft Design | Nameplate RPM | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3E254JP | 254JP | 33.5-37.2/18.6 | 15 | 1000:1 Variable, 20:1 Constant Torque | 16 15/16" | JP Threaded | 1775 | 93.0% | €2,865.31 | |
| 02036OT3E254JP | 254JP | 44.3-49.2/24.6 | 20 | 1000:1 Variable, 20:1 Constant Torque | 16 15/16" | JP Threaded | 3520 | 91.0% | €3,078.90 | |
| 02018OT3E256JP | 256JP | 45.5-50.6/25.3 | 20 | 1000:1 Variable, 20:1 Constant Torque | 18.625" | JP Threaded | 1775 | 93.0% | €3,591.88 | |
| 02536OT3E256JP | 256JP | 53.6-59.6/29.8 | 25 | 1000:1 Variable, 20:1 Constant Torque | 18.625" | JP Threaded | 3530 | 91.7% | €5,252.64 | |
| 02518OT3E284JP | 284JP | 53.8-59.8/29.9 | 25 | 1000:1 Variable, 20:1 Constant Torque | 19" | JP Threaded | 1770 | 93.6% | €5,968.70 | |
| 03036OT3E284JP | 284JP | 63.4-70.4/35.2 | 30 | 1000:1 Variable, 20:1 Constant Torque | 19" | JP Threaded | 3530 | 92.4% | €6,495.04 | |
| 03018OT3E286JP | 286JP | 63.7-70.8/35.4 | 30 | 1000:1 Variable, 20:1 Constant Torque | 20.5" | JP Threaded | 1770 | 94.1% | €4,783.09 |
