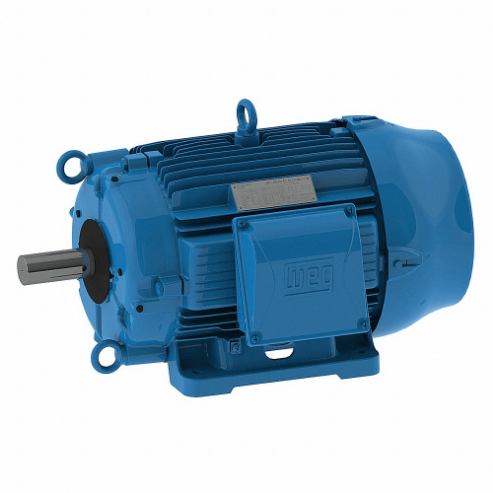

| Item | Cooling Tower Motor |
| Ambient Temp. Range | 40 Degrees C |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency Group | NEMA Premium |
| Enclosure | Totally Enclosed Fan-Cooled |
| Finish | Blue |
| Frame | 326T |
| Frame Material | Cast Iron |
| Full Load Amps | 131-118/59.2 |
| HP | 50 |
| Hz | 50/60 |
| Insulation Class | F |
| Length Less Shaft | 25.875" |
| Motor Application | Cooling Towers |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Motor Type | 3-Phase |
| Mounting | Foot |
| Mounting Position | Vertical/Horizontal |
| Nameplate RPM | 1780 |
| Nominal Efficiency | 94.5 |
| Overall Length | 31.125" |
| Phase | 3 |
| Rotation | CW/CCW |
| RPM Range | 1701-1800 |
| Service Factor | 1.25 |
| Shaft Dia. | 2.125" |
| Shaft Length | 5.25" |
| Thermal Protection | None |
| Voltage | 208-230/460 |
| Warranty | 3 yr. |
| Ship weight (kg) | 277.65 |
| Ship height (cm) | 72.12 |
| Ship length (cm) | 104.43 |
| Ship width (cm) | 63 |
| HS code | 8501528040 |
| Country of Origin | BR |
| Model | Shaft Length | Nameplate RPM | Frame | HP | Length Less Shaft | Motor Mounting Position | Mounting | Mounting Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3ECT143TF1-W2 | 2.25" | 1760 | 143T | 1 | 10.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | €1,111.53 | |
| 00158ET3PCT145TF1-W2 | 2.25" | 1755 | 145T | 1.5 | 11.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | €1,161.13 | |
| 00158ET3ECT145TF1-W2 | 2.25" | 1755 | 145T | 1.5 | 11.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | €1,161.13 | |
| 00218ET3PCT145TF1-W2 | 2.25" | 1750 | 145T | 2 | 11.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | €1,314.86 | |
| 00218ET3ECT145TF1-W2 | 2.25" | 1750 | 145T | 2 | 11.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | €1,290.52 | |
| 00318ET3PCT182TF1-W2 | 2.75" | 1760 | 182T | 3 | 12.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | €1,334.09 | |
| 00318ET3ECT182TF1-W2 | 2.75" | 1760 | 182T | 3 | 12.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | €1,338.74 |
