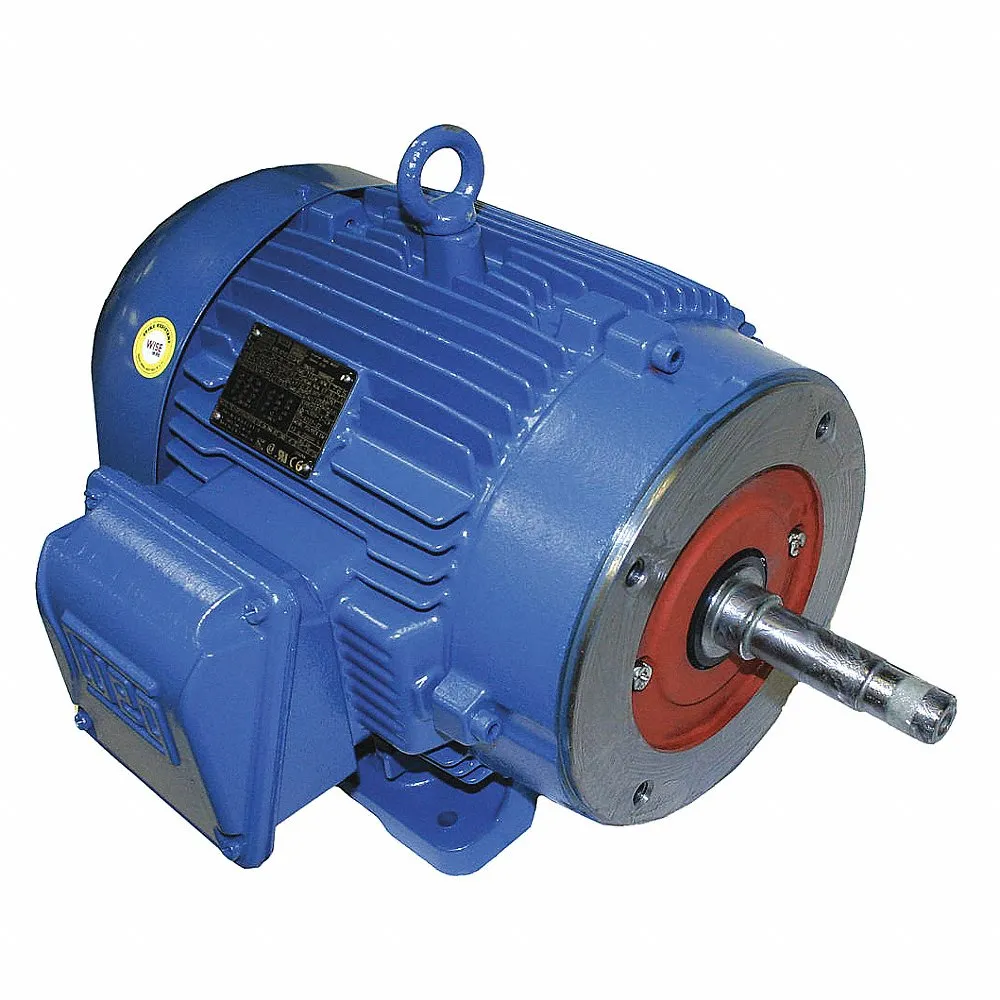

WEG 04036ET3E286JM-W22 Electric Motor, 40Hp, 60Hz, 3600 Rpm
Get it by Tuesday, Jun 17
€5,693.91 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Close-Coupled Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 13 4/5" |
| Bolt Circle Dia. | 11" |
| Composition | Cast Iron |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 92.4% |
| Frame Material | Cast Iron |
| Frame Type | 284/6JM |
| Frequency | 60 Hz |
| Full Load Amps | 101-91.6/45.8A |
| Height | 13 13/16" |
| Hp | 40 hp |
| Includes | Base |
| Inverter Rated | Yes |
| Inverter Rating | 1000:01 |
| Length Less Shaft | 23 7/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Close Coupled Pump |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Face/Base |
| Nameplate Rpm | 3535 RPM |
| No. Of Speeds | 1 |
| Overall Length | 28 11/16" |
| Phase | 3 |
| Regreasable Bearings | Yes |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 1/4" |
| Shaft Length | 5 1/4" |
| Shaft Material | Stainless Steel |
| Ships Factory Direct | No |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Cc Number | CC029A |
| Frame | 284/6JM |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Manufacturers Warranty Length | 3 yrs. |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1 |
| Motor Sub Application | Close Coupled Pump |
| Motor Thermal Protection | None |
| Nema Design | NEMA A |
| Nominal Efficiency | 92.4% |
| Standards | CSA (LR38324), CSA (LR50962), UL (E104590) |
| Weight | 437 lbs. |
| Ship weight (kg) | 202.5 |
| Ship height (cm) | 35.08 |
| Ship length (cm) | 72.87 |
| Ship width (cm) | 35.05 |
| Model | Bearings | Frame | Full Load Amps | HP | Hz | Inverter Rated | Length Less Shaft | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3E143JM-W22 | Regreasable Ball | 143JM | 37-2.82/1.41 | 1 | 60 | 1000:1 Variable, 20:1 Constant Torque | 10.187" | 40 Degrees C | €856.66 | |
| 00156ET3E143JM-W22 | Regreasable Ball | 143JM | 4.20-3.82/1.91 | 1.5 | 60 | 1000:1 Variable, 20:1 Constant Torque | 10.187" | 40 Degrees C | €973.26 | |
| 00158ET3E145JM-W22 | Regreasable Ball | 145JM | 4.36-4.04/2.02 | 1.5 | 60 | 1000:1 Variable, 20:1 Constant Torque | 11.187" | 40 Degrees C | €754.23 | |
| 00218ET3E145JM-W22 | Regreasable Ball | 145JM | 5.77-5.22/2.61 | 2 | 60 | 1000:1 Variable, 20:1 Constant Torque | 11.187" | 40 Degrees C | €851.20 | |
| 00336ET3E182JM-W22 | Regreasable Ball | 182JM | 8.1-7.26/3.63 | 3 | 60 | 1000:1 Variable, 20:1 Constant Torque | 11.875" | 40 Degrees C | €1,070.27 | |
| 00318ET3E182JM-W22 | Regreasable Ball | 182JM | 8.58-7.76/3.88 | 3 | 60 | 1000:1 Variable, 20:1 Constant Torque | 11.875" | 40 Degrees C | €1,171.89 | |
| 00536ET3E184JM-W22 | Regreasable Ball | 184JM | 13.1-11.8/5.90 | 5 | 60 | 1000:1 Variable, 20:1 Constant Torque | 12 15/16" | 40 Degrees C | €1,198.63 |
