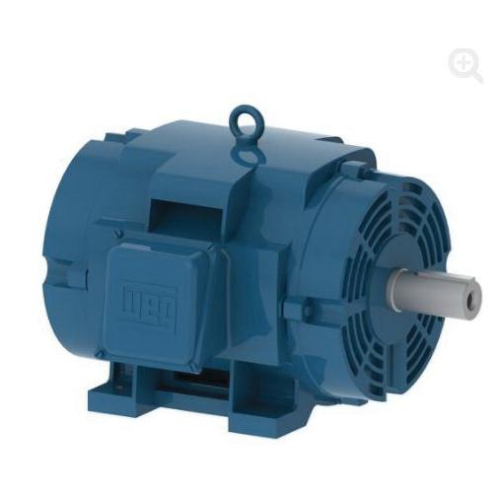

| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC029A |
| Composition | Cast Iron |
| Duty Cycle | Continuous |
| Efficiency | 93% |
| Efficiency Group | Premium |
| Frame | 256T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 48.2/24.1A |
| Full Load Amps @ 50hz | 21.2/21.4/22A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 20 hp |
| Insulation Class | Class F |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1765 RPM |
| Nema Design | No Design Code |
| No. Of Speeds | 1 |
| Overall Length | 22 5/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4" |
| Ships Factory Direct | No |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Warranty | 3 yrs. |
| Ship weight (kg) | 131.4 |
| Ship height (cm) | 40.13 |
| Ship length (cm) | 48.77 |
| Ship width (cm) | 69.34 |
| HS code | 8501524000 |
| Country of Origin | BR |
