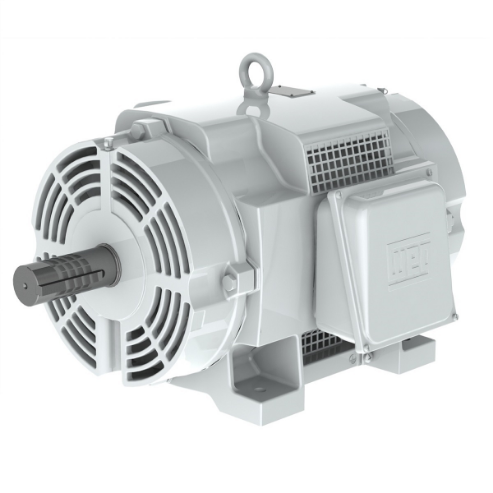

WEG 01012OS3EOW256T 11744163 Well Motor, 10 Hp, 1110 Rpm, 208-230/460
Get it by Monday, Jun 16
€2,939.30 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Oil Well Pumping Motor |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Body Dia. | 14 2/5" |
| Cc Number | CC029A |
| Color | White |
| Conduit Box Location | Exterior |
| Conduit Box Position | F2 |
| Duty Cycle | Continuous |
| Frame | 256T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 29.9-27/13.5A |
| Height | 14 3/8" |
| Hp | 10 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1110 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 83% |
| Overall Length | 22 3/8" |
| Phase | 3 |
| Rotation | Clockwise/Counter Clockwise |
| Service Factor | 1 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4" |
| Shaft Material | Carbon Steel |
| Shaft Type | Keyed |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Finish | White |
| Hz | 60 |
| Ins. Class | Class F |
| Length Less Shaft | 18 3/8" |
| Manufacturers Warranty Length | 3 yrs. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Oil Well Pump |
| Motor Thermal Protection | None |
| Standards | CSA (078282-0) |
| Weight | 260 lbs. |
| Ship weight (kg) | 127.8 |
| Ship height (cm) | 36.51 |
| Ship length (cm) | 56.83 |
| Ship width (cm) | 48.77 |
| HS code | 8501524000 |
| Country of Origin | BR |
| Model | Bearings | Duty | Efficiency Group | Enclosure | Finish | Frame | Full Load Amps | HP | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00312ES3EOW215T-W22 | Ball | Continuous | Energy Efficient | Totally Enclosed Fan-Cooled | White Epoxy | 215T | 11.0-9.96/4.98 | 3 | €1,243.72 | |
| 00512ES3EOW215T-W22 | Ball | Continuous | Energy Efficient | Totally Enclosed Fan-Cooled | White Epoxy | 215T | 16.4-14.8/7.4 | 5 | €1,496.25 | |
| 00509ES3EOW256T-W22 | Regreasable Ball | Continuous | Energy Efficient | Totally Enclosed Fan-Cooled | White Epoxy | 256T | 16.0-14.5/7.25 | 5 | €2,709.07 | |
| 00712ES3EOW254T-W22 | Regreasable Ball | Continuous | Energy Efficient | Totally Enclosed Fan-Cooled | White Epoxy | 254T | 20.5-18.5/9.26 | 7.5 | €2,134.10 | |
| 01012ES3EOW256T-W22 | Regreasable Ball | Continuous | Energy Efficient | Totally Enclosed Fan-Cooled | White Epoxy | 256T | 28.9-26.1/13.1 | 10 | €2,609.10 | |
| 01009ES3EOW286T-W22 | Regreasable Ball | Continuous | Energy Efficient | Totally Enclosed Fan-Cooled | White Epoxy | 286T | 30.7-27.8/13.9 | 10 | €3,935.53 | |
| 01512ES3EOW284T-W22 | Regreasable Ball | Continuous | Energy Efficient | Totally Enclosed Fan-Cooled | White Epoxy | 284T | 40.8-36.9/18.5 | 15 | €3,392.37 |
