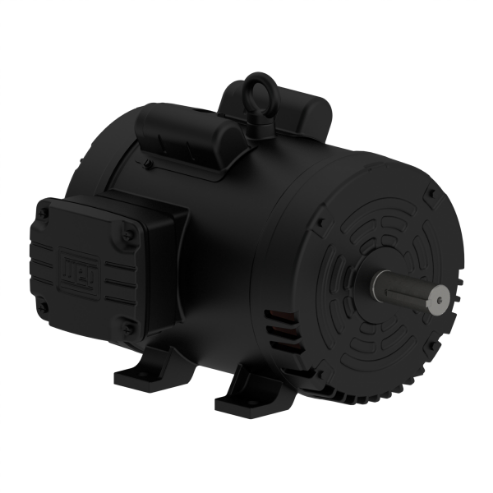

WEG 00518OS1CCD184T 10016488 Air Compressor Motor, 5 Hp, 1745rpm 208-230v 184t
Get it by Tuesday, Jun 17
€940.60 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Air Compressor Motor |
| Ambient Temp. | 40°C |
| Application | Air Compressor |
| Bearing Type | Ball |
| Capacitor Included | Yes |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 80% |
| Frame | 184T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 20.7-23A |
| Hp | 5 hp |
| Includes | Capacitor |
| Insulation Class | Class F |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Speeds | 1 |
| Overall Length | 14 7/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Thermal Protection | None |
| Voltage | 208-230V AC |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 12 1/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Air Compressor |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Frame Material | Cast Iron |
| Motor Service Factor | 1.25 |
| Motor Thermal Protection | None |
| Nominal Efficiency | 80% |
| Standards | NEMA MG-1 |
| Weight | 93.2 lbs. |
| Ship weight (kg) | 45.11 |
| Ship height (cm) | 31.5 |
| Ship length (cm) | 37.78 |
| Ship width (cm) | 37.08 |
| HS code | 8501524000 |
| Country of Origin | BR |
| Product | Model | Frame | Full Load Amps | HP | Hz | Item | Length Less Shaft | Max. Ambient Temp. | Motor Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
00518OS1CCDOL184T | 184T | 23.5-21.5 | 5 | 60 | Air Compressor Motor | - | 40 Degrees C | Air Compressors | €1,010.28 | |
 |
00718OS1CCD215T | 215T | 33.3-31.3 | 7.5 | 60 | Air Compressor Motor | - | 40 Degrees C | Air Compressors | €1,320.69 | |
|
01018OS1CCD215T | 215T | 45.0-43.0 | 10 | 60 | Air Compressor Motor | - | 40 Degrees C | Air Compressors | €2,010.18 | |
 |
13444696 | 56 | 9.14/4.7-4.57A | 3/4 | 60 Hz | Air Compressor Motor | 8 3/8" | 40 Deg. C | Air Compressor | €317.66 | |
 |
13521268 | 56HZ | 20.3A | 5 | 60 Hz | Air Compressor Motor | 12.9375" | 40 Deg. C | Air Compressor | €635.36 | |
 |
00536OS1DCD56H-S | - | - | - | - | General Purpose Motor | - | - | - | €477.46 | |
 |
00218OT1B56-S | - | - | - | - | General Purpose Motor | - | - | - | €652.58 |
