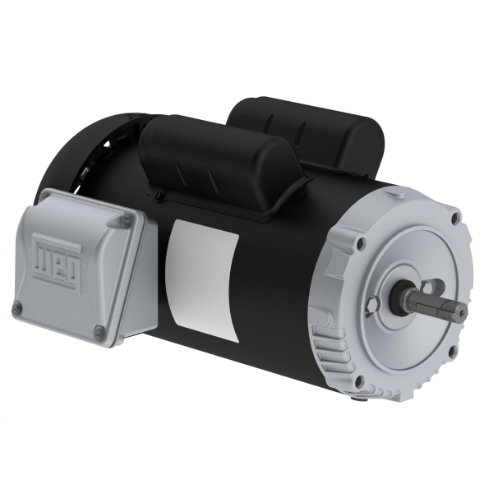

WEG 00336ES1DJPR56C-S 14795601 Electric Motor, 3Hp, 60Hz, 3600 Rpm
Get it by Tuesday, Jun 17
€578.57 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 250% |
| Cold Locked Rotor Time | 10 sec. |
| Composition | Steel |
| Design | L |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 94% |
| Efficiency At 50 % | 86% |
| Efficiency At 75 % | 92% |
| Fan Cover Material | Polymer |
| Fan Material | Plastic |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 6 sec. |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 102A |
| Locked Rotor Torque | 210% |
| Lrc | 8.0X(Code J) |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.0944 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3490 RPM |
| Mounting | Footless |
| No Load Amps | 4A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 1 |
| Power Factor At 1 % | 80 |
| Power Factor At 50 % | 76 |
| Power Factor At 75 % | 79 |
| Rated Current | 12.7A |
| Rated Torque | 4.51 lbs.-ft. |
| Rated Voltage | 230V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 3.06% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230V AC |
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 39.31 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
| Product | Model | Price | |
|---|---|---|---|
 |
.7536ES1BJPR56J-S | €350.28 | RFQ
|
|
00336ES1DJPR56J-S | €597.34 | |
 |
.5036ES1BJPRW56J-S | €317.95 | RFQ
|
|
00136ES1BJPR56J-S | €402.40 | |
 |
00236ES1BJPR56J-S | €519.14 | |
 |
.5036ES1BJPRW56C-S | €311.69 | |
 |
.7536ES1BJPR56C-S | €355.49 | RFQ
|
