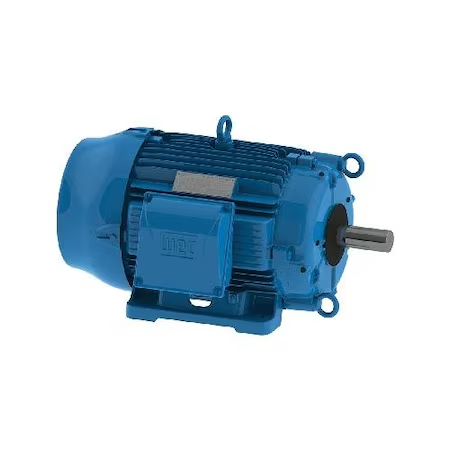

WEG 00318ET3PCT182T-W22 Electric Motor, 3Hp, 60Hz, 1760 Rpm
Get it by Monday, Jun 16
€814.16 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Cooling Tower Motor |
| Application | Cooling Tower |
| Body Material | Cast Iron |
| Ct Speed Range | 20:1 |
| Efficiency | 89.5% |
| Enclosure Nema Rating | IC411 - TEFC |
| Frame | 182T |
| Frequency | 50/60 Hz |
| Inverter Rating | Inverter Duty |
| Ip Enclosure Rating | IP55 |
| Mounting Arrangement | F1, F2 |
| Mounting Orientation | Horizontal/Vertical |
| Nema Mount | With Base |
| Output Hp | 3 hp |
| Output Kw | 2.2 kW |
| Output Rpm | 1760 RPM |
| Phase | 3 |
| Service Factor | 1.25 |
| Space Heater Voltage | 110-127/200-240V AC |
| Voltage | 200V AC |
| Weight | 99 lbs. |
| Ship weight (kg) | 43.2 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 37.74 |
| Ship width (cm) | 37.08 |
| Country of Origin | BR |
| Model | Frame | Full Load Amps | HP | Length Less Shaft | Motor Mounting Position | Mounting | Mounting Position | Nameplate RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3ECT143TF1-W2 | 143T | 3.07-2.82/1.41 | 1 | 10.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | 1760 | €1,052.92 | |
| 00158ET3PCT145TF1-W2 | 145T | 4.65 | 1.5 | 11.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | 1755 | €1,116.42 | |
| 00158ET3ECT145TF1-W2 | 145T | 4.36-4.04/2.02 | 1.5 | 11.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | 1755 | €1,099.67 | |
| 00218ET3PCT145TF1-W2 | 145T | 6.0 | 2 | 11.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | 1750 | €1,169.96 | |
| 00218ET3ECT145TF1-W2 | 145T | 5.77-5.22/2.61 | 2 | 11.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | 1750 | €1,169.96 | |
| 00318ET3PCT182TF1-W2 | 182T | 8.92 | 3 | 12.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | 1760 | €1,243.89 | |
| 00318ET3ECT182TF1-W2 | 182T | 8.58-7.76/3.88 | 3 | 12.125" | Horizontal or Vertical Shaft Up | Base | Horizontal or Shaft Up | 1760 | €1,269.26 |
