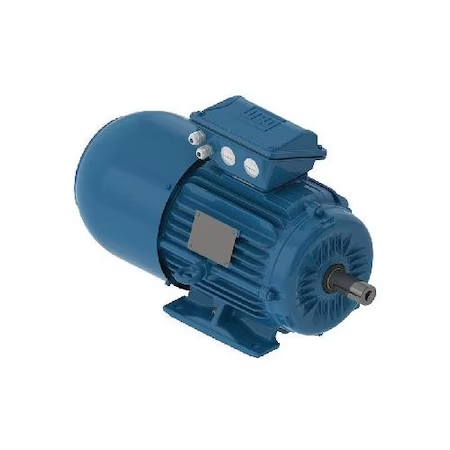

WEG 00318ET3EBM182T-W22 13500906 Electric Motor, 3Hp, 60Hz, 1800 Rpm
Get it by Tuesday, Jun 17
€2,085.65 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | No |
| Brake Input Voltage | 220-240V AC |
| Braking Torque | 60 N-m |
| Break-down Torque | 340% |
| Cold Locked Rotor Time | 41 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 79% |
| Efficiency At 50 % | 61% |
| Efficiency At 75 % | 73% |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 182/4T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 23 sec. |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 63.3/31.7A |
| Locked Rotor Torque | 229% |
| Lrc | 8.1X(Code K) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 0.3401 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1760 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 4/2A |
| No. Of Poles | 4 |
| Noise Level | 56 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 89.5 |
| Power Factor At 50 % | 87.5 |
| Power Factor At 75 % | 88.5 |
| Rated Current | 7.82/3.91A |
| Rated Torque | 8.95 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Rotation | Clockwise/Counter Clockwise |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V AC |
| Ship weight (kg) | 51.75 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 49.06 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
| Model | Price | |
|---|---|---|
| 00218ET3EBM145T-W22 | €1,661.68 | |
| 00512ET3EBM215T-W22 | €3,440.37 | |
| 01018ET3EBM215T-W22 | €3,509.04 | |
| 00312ET3EBM213T-W22 | €3,252.48 | |
| 00536ET3EBM184T-W22 | €2,381.43 | |
| 02518ET3EBM284T-W22 | €6,728.04 | |
| 00718ET3EBM213T-W22 | €2,932.29 |
