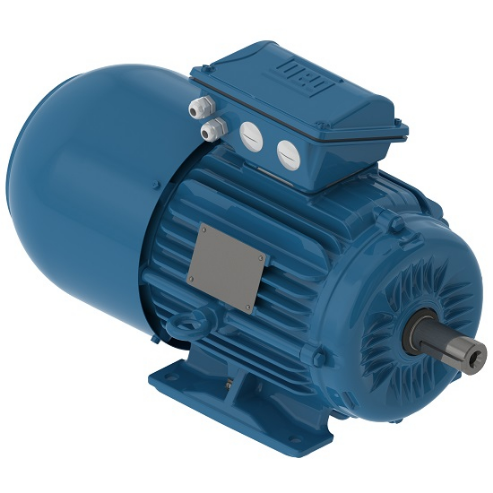

WEG 00312ET3ECT213TF1-W2 13728748 Electric Motor, 3Hp, 60Hz, 1200 Rpm
Get it by Tuesday, Jun 17
€1,403.41 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Cooling Tower Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Break-down Torque | 280% |
| Cold Locked Rotor Time | 104 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Automatic, Rubber |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 70% |
| Efficiency At 50 % | 50% |
| Efficiency At 75 % | 63% |
| Enclosure | Totally Enclosed Fan Cooled |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 213T |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 58 sec. |
| Impregnation Method | Double Impregnation Polyester |
| Joints Seal | Permatex |
| L. R. Amps | 61.8/30.9A |
| Locked Rotor Torque | 200% |
| Lrc | 7.0X(Code K) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 1.2 lbs.-sq. ft. |
| Mounting | Foot Mounted |
| No Load Amps | 5.5/2.75A |
| No. Of Poles | 6 |
| Noise Level | 55 dBA |
| Output Hp | 3 hp |
| Output Power | 2.2 kW |
| Output Rating | 3 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Power Factor At 1 % | 89.5 |
| Power Factor At 50 % | 86.5 |
| Power Factor At 75 % | 88.5 |
| Rated Current | 8.83/4.41A |
| Rated Speed | 1175 RPM |
| Rated Torque | 13.4 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Rotation | Clockwise/Counter Clockwise |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 2.08% |
| Space Heater Voltage | 110-127/200-240V AC |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Complete (200H) |
| Voltage | 230/380/460V AC |
| Ship weight (kg) | 68.4 |
| Ship height (cm) | 72.12 |
| Ship length (cm) | 104.43 |
| Ship width (cm) | 63 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
01012ET3HCT256TF1-W2 | €2,778.76 | |
|
00312ET3HCT213TF1-W2 | €1,403.41 | |
 |
00512ET3HCT215TF1-W2 | €1,541.88 | |
|
00512ET3PCT215TF1-W2 | €1,541.88 | |
|
00712ET3ECT254TF1-W2 | €2,457.55 | |
|
00312ET3PCT213TF1-W2 | €1,403.41 | |
|
00712ET3HCT254TF1-W2 | €2,457.55 |
