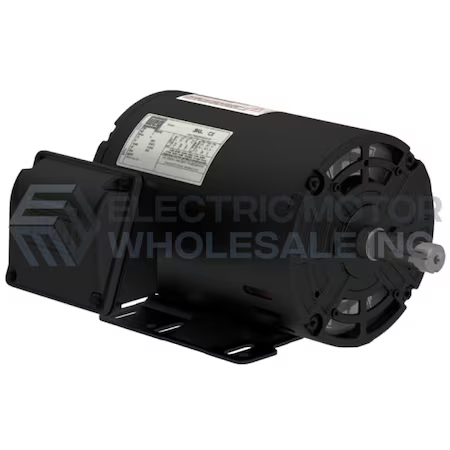

WEG 00236OT3E145T-SG 12674939 Electric Motor, 2Hp, 60Hz, 3600 Rpm
Get it by Wednesday, Jun 18
€653.62 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 330% |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 91% |
| Efficiency At 50 % | 77% |
| Efficiency At 75 % | 86% |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 143/5T |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 14 sec. |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 43.1/21.5A |
| Locked Rotor Torque | 220% |
| Lrc | 8.9X(Code K) |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.1151 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3510 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 1.83/0.917A |
| No. Of Poles | 2 |
| Noise Level | 62 dBA |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Power Factor At 1 % | 85.5 |
| Power Factor At 50 % | 84 |
| Power Factor At 75 % | 85.5 |
| Rated Current | 4.84/2.42A |
| Rated Torque | 2.99 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/190-220/380-415V AC |
| Ship weight (kg) | 18 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | MX |
| Model | Price | |
|---|---|---|
| 02018OT3E256T-SG | €2,133.30 | |
| 00718OT3E213T-SG | €1,157.14 | |
| 01518OT3E254T-SG | €1,785.81 | |
| 00336OT3E145T-SG | €714.08 | |
| 00518OT3E184T-SG | €833.96 | |
| 01018OT3E215T-SG | €1,357.28 | |
| 00518OT3V184T-SG | €833.96 |
