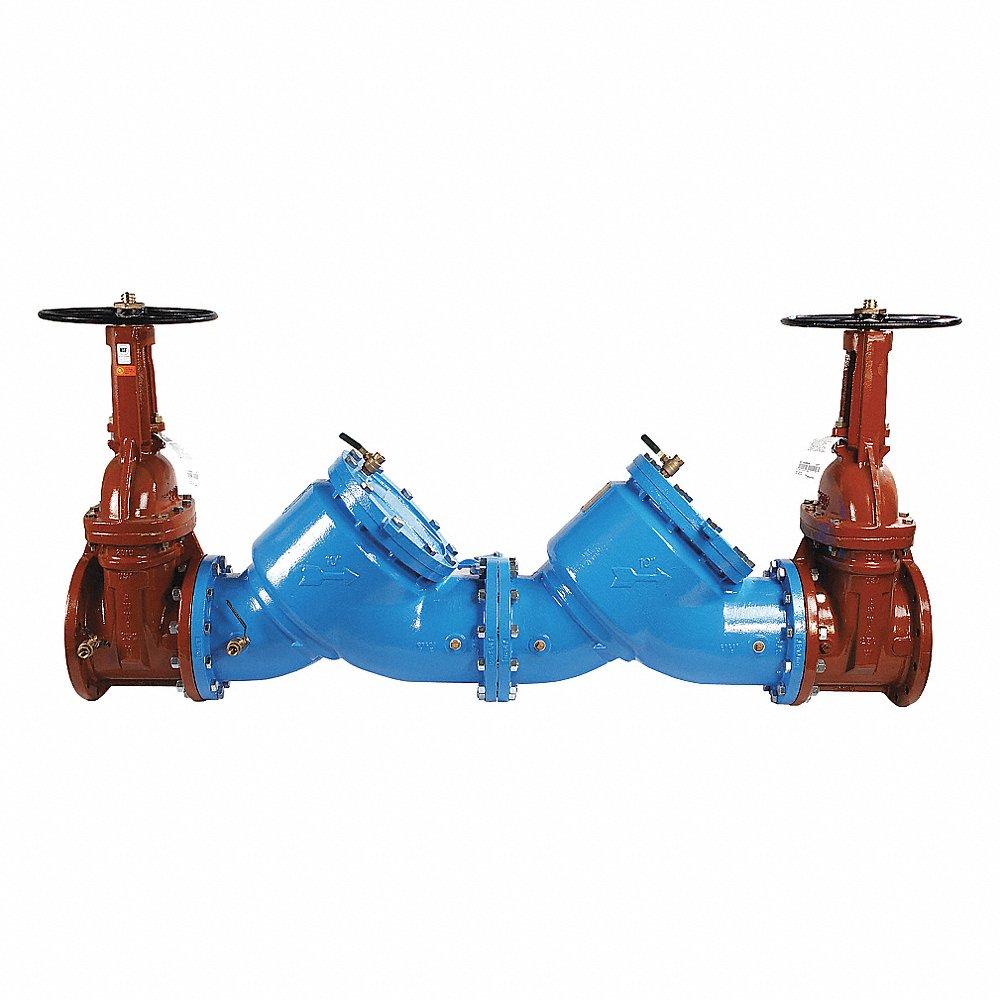

WATTS LF709-OSY Double Check Valve Assembly, 8 Inch Size, Flanged, Cast Iron
Get it by Tuesday, Jun 17
€28,401.57 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Double Check Valve Assembly |
| Backflow Preventer Type | Double Check Assembly (DC) |
| Body Material | Cast Iron |
| Check Valve Length | 52 1/8" |
| Configuration | Standard Configuration |
| Connection Size - Side 1 | 8" |
| Connection Size - Side 2 | 8" |
| Connection Type | Flange x Flange |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| Flow Rate | 2500 GPM |
| For Media | Water |
| Hazard Protection Level | Low Health Hazard |
| Includes Flow Meter | No Flow Meter |
| Includes Freeze Protection | No Freeze Sensor |
| Includes Strainer | No Strainer |
| Manufacturer Warranty | 1 yr. |
| Max. Media Temperature | 110°F |
| Max. Pressure (cwp) | 175 psi |
| Media Temp. Range | 33°F to 110°F |
| Min. Media Temperature | 33°F |
| Mounting Orientation | Horizontal, Vertical |
| Overall Height | 44.25" |
| Overall Length | 75.44" |
| Overall Width | 20 1/4" |
| Pipe Size | 8" |
| Protection Type | Back Pressure, Back Siphonage |
| Seat Material | Stainless Steel |
| Shut-off Valve Type | OSY Gate Valve |
| Standards | ASSE 1015, AWWA C510-92, CSA B64.5, CULUS CLASSIFIED, FM, IAPMO PA31, NSF, UPC, USC MANUAL |
| Valve Series | LF709 |
| Valve Series | 709 |
| Ship weight (kg) | 680.4 |
| Model | Inlet Size | Max. Temp. | Max. Working Pressure | Min. Temp. | Outlet Size | Valve Type | Price | |
|---|---|---|---|---|---|---|---|---|
| LF709-LF 2 1/2 | 2-1/2" | 110 Degree F | 12.1 Bar | 33 Degree F | 2-1/2" | No Shutoff Valve | €3,705.59 | RFQ
|
| LF709-LF 3 | 3" | 110 Degree F | 12.1 Bar | 33 Degree F | 3" | No Shutoff Valve | €4,069.73 | RFQ
|
| LF709-LF 4 | 4" | 110 Degree F | 12.1 Bar | 33 Degree F | 4" | No Shutoff Valve | €4,318.08 | RFQ
|
| LF709-LF 6 | 6" | 110 Degree F | 12.1 Bar | 33 Degree F | 6" | No Shutoff Valve | €9,630.65 | RFQ
|
| LF709-LF 8 | 8" | 110 Degree F | 12.1 Bar | 33 Degree F | 8" | No Shutoff Valve | €15,172.54 | RFQ
|
| LF709-LF 10 | 10" | 110 Degree F | 12.1 Bar | 33 Degree F | 10" | No Shutoff Valve | €19,591.76 | RFQ
|
| LF709-DOSY 2 1/2 | 2-1/2" | 110 Degree F | 12.1 Bar | 33 Degree F | 2-1/2" | Outside Stem And Yoke Gate Valve | €6,341.09 | RFQ
|
