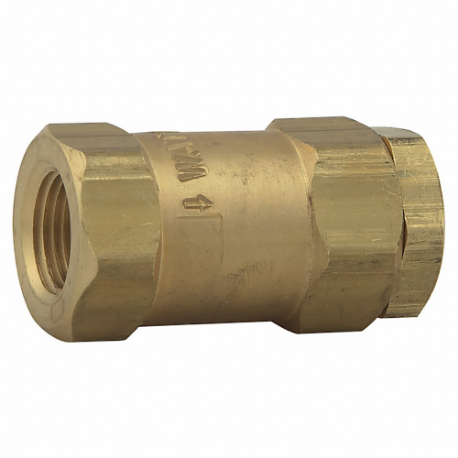

| Item | Check Valve |
| Body Material | Brass , Lead Free Copper Silicon Alloy |
| Connection Type | FNPT |
| Cracking Pressure | 1/2 psi |
| Flow Design | Single |
| Full Flow | No |
| Length | 2 1/2" |
| Max. Steam Pressure | Not Rated |
| Max. Temp. | 180°F |
| Max. Water Pressure | 200 psi |
| Mechanism And Body Design | Inline Swing |
| Min. Temp. | 33°F |
| Mounting Orientation | Horizontal/Vertical |
| Overall Height | 1 1/4" |
| Pipe Size, Tube Size | 3/4" |
| Seat Material | Elastomer |
| Temp. | 180°F |
| Width | 1 1/4" |
| 3-a Compliance | Not Rated |
| Check Mechanism | Disc |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/4" |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Disc Material | Copper Silicone Alloy |
| For Media | General Purpose |
| Includes Counterweight | No Counterweight |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure (steam) | Not Rated |
| Media Temp. Range | 33°F to 180°F |
| Operating Temperature - Maximum | 180°F |
| Operating Temperature - Minimum | 33°F |
| Overall Length | 2.5" |
| Pipe Size | 3/4" |
| Silent Check | Silent |
| Valve Body Style | Inline |
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 3.18 |
| Country of Origin | US |
