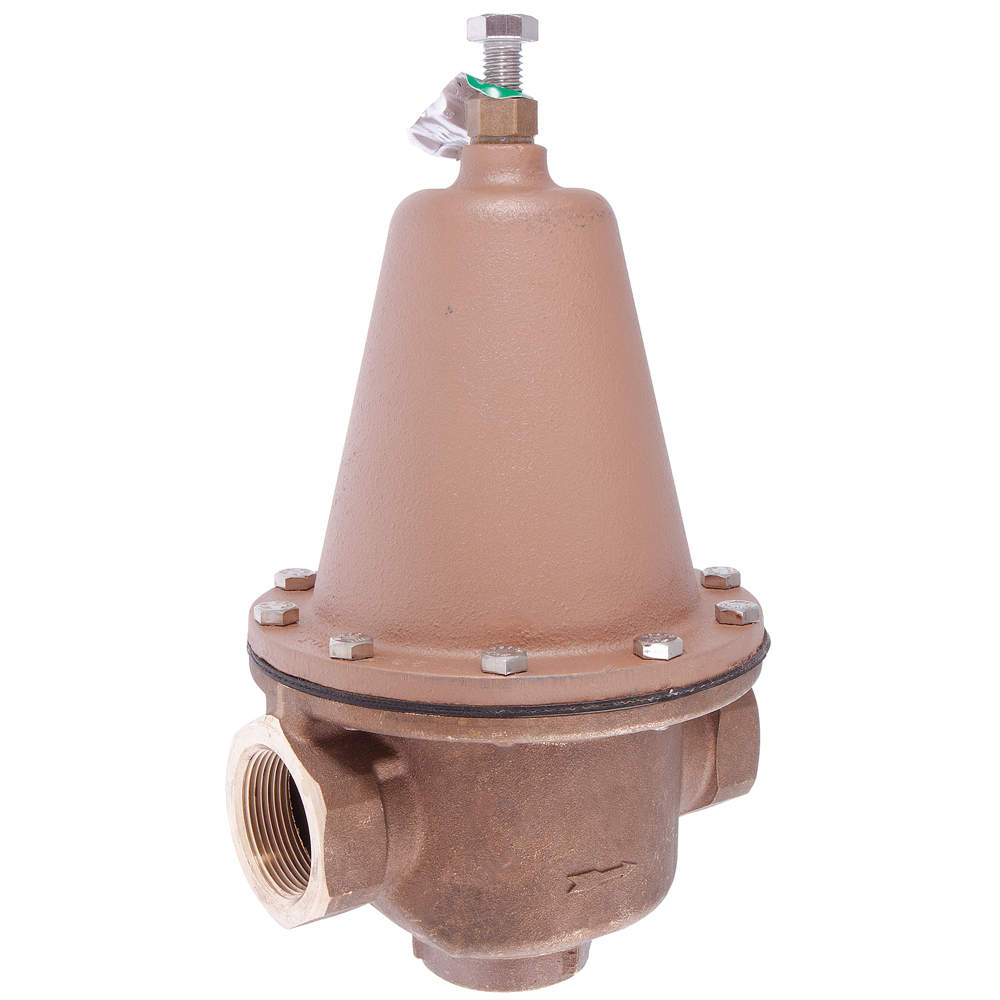

| Item | Water Pressure Reducing Valve |
| Adjustable Pressure Range | 25 psi to 75 psi |
| Application | Water |
| Connection Type | FNPT Union x FNPT |
| Height | 8 3/4" |
| Length | 5" |
| Material | Lead Free Brass |
| Max. Pressure | 300 psi |
| Max. Temp. | 160°F |
| Pipe Size | 1 1/4" |
| Preset Pressure Settings | 50 psi |
| Strainer | No |
| Type | Super Capacity |
| Body Material | Brass |
| Coating/lining | NSF Listed Fusion Bonded Epoxy Lining and Coating |
| Connections | NPT x NPT |
| Disc Material | EPDM |
| Factory Set Pressure | 50 psi |
| For Media | Water |
| Includes Strainer | Strainer Not Included |
| Inlet Connection Size | 1 1/4" |
| Low-lead Compliance | Low-Lead Compliant |
| Max. Operating Temperature | 160°F |
| Nsf Certifications For Food And Drinking Water | NSF 61G |
| Operating Pressure Range | 300 psi |
| Outlet Connection Size | 1 1/4" |
| Overall Height | 9 1/2" |
| Overall Width | 5" |
| Port Design | Full Port |
| Pressure Adjustment Range | 25 psi to 75 psi |
| Seat Material | Stainless Steel |
| Standards | ANSI A112.26, ASSE 1003, CSA B356, MILITARY STANDARD MIL-V-18146B, SOUTHERN STANDARD PLUMBING CODE |
| Ship weight (kg) | 4.21 |
| Ship height (cm) | 24.45 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 21.59 |
| HS code | 8481801095 |
| Country of Origin | US |
| Product | Model | Adjustable Reduced Pressure Range | Body Material | Connection Type | Disc Material | Height | High Pressure Reduced Pressure Range | Inlet Size | Inlet Thread Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LF223-S 1/2 | - | Lead Free Brass | FIP | - | 8.25" | - | 1/2" | - | €602.28 | |
 |
LF223-S 3/4 | - | Lead Free Brass | FIP | - | 8.25" | - | 3/4" | - | €646.29 | |
 |
LF223-S 1 | - | Lead Free Brass | FIP | - | 8.625" | - | 1" | - | €891.49 | |
|
LF223-S 1 1/4 | - | Lead Free Brass | FIP | - | 9.5" | - | 1.25" | - | €1,582.71 | |
|
LF223-S 1 1/2 | - | Lead Free Brass | FIP | - | 12.625" | - | 1.5" | - | €1,595.24 | |
 |
LF223-S 2 | - | Lead Free Brass | FIP | - | 14.13" | - | 2" | - | €2,393.16 | |
 |
1/2 LF 223 | - | - | FNPT Union x FNPT | - | 8.25" | - | - | - | €529.91 |
