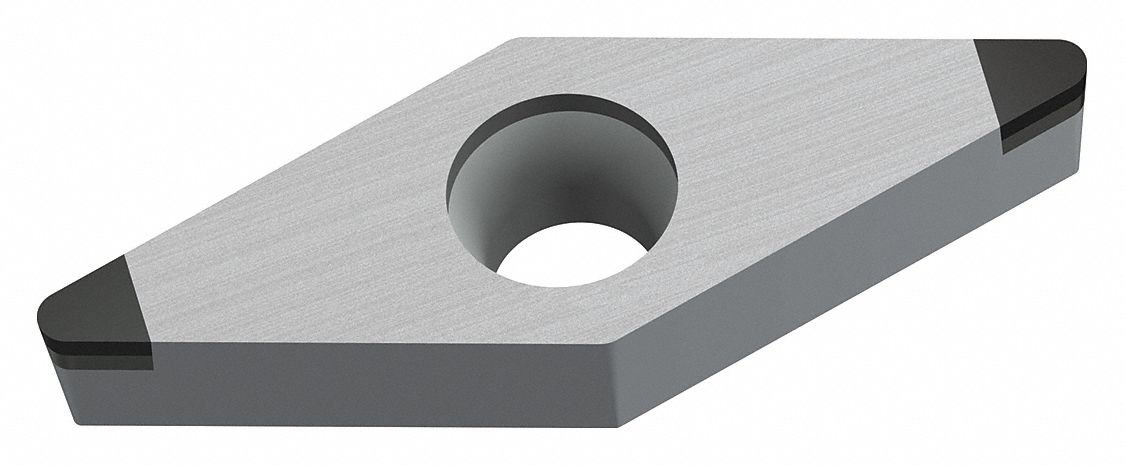

| Item | Turning Insert |
| Ansi Code | VBGW331TM-2 |
| Chip-breaker Code | Yes |
| Clearance Angle | 5° |
| Corner Radius | 0.016" |
| Cutting Direction | Neutral |
| Cutting Length | 16.61 mm |
| Finish | CBN |
| Inscribed Circle | 3/8" |
| Insert Type | VBGW |
| Inside Dia. | 0.173" |
| Iso Number | VBGW160404TM-2 |
| Material | Cubic Boron Nitride |
| Rake | Positive |
| Shape | Diamond |
| Thickness | 0.188" |
| Chip-breaker | Yes |
| Cutting Edge Length | 16.61 mm |
| Included Angle | 35° |
| Insert Code | VBGW331 |
| Insert Style | VBGW |
| Manufacturer Grade | WBH10 |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| Through Hole Inside Dia. | 0.173" |
| Ship weight (kg) | 0.03 |
| Country of Origin | DE |
| Product | Model | Ansi Code | Ansi Number | Chip-breaker | Clearance Angle | Coating | Corner Radius | Cutting Length | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CCGW060204TM-2 WBH10 | CCGW21.51TM-2 | - | Yes | 7 Deg. | - | 1/64" | 6.45 mm | - | €119.74 | |
|
CCGW060208TM-2 WBH20 | CCGW21.52TM-2 | - | Yes | 7 Deg. | - | 1/32" | 6.45 mm | - | €119.74 | |
|
CCGW09T304TM-2 WBH10 | CCGW32.51TM-2 | - | Yes | 7 Deg. | - | 1/64" | 9.67 mm | - | €119.74 | |
|
CCGW09T308TM-2 WBH10 | CCGW32.52TM-2 | - | - | 7 Deg. | - | 1/32" | 9.67 mm | - | €119.74 | |
 |
CCMT09T308-PM WKK10S | - | CCMT3(2.5)1 | PM | - | CVD | - | - | WKK10S | €21.08 | RFQ
|
 |
CCMT160508 WPP20 | - | CCMT5(3.5)2 | FP | - | CVD | - | - | WPP20 | €38.90 | |
 |
CNGA120404TM-2 WBH10 | CNGA431TM-2 | - | Yes | - | - | 1/64" | 12.9 mm | - | €116.27 |
