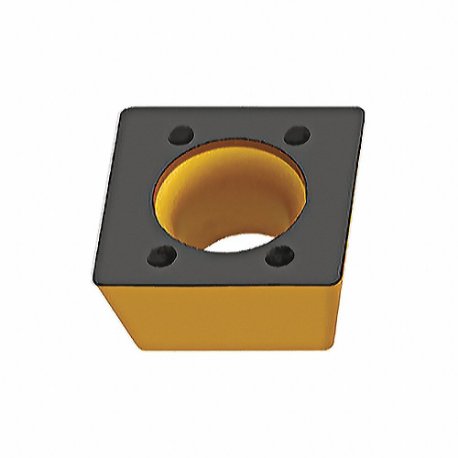

WALTER TOOLS SPHW120606-A57 WAK15 Square Milling Insert, 1/2 Inch Inscribed Circle, 0.0240 Inch Corner Radius
Get it by Wednesday, Jun 18
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Milling Insert |
| Ansi Number | SPHW120606-A57 |
| Chip-breaker | Yes |
| Chip-breaker Code | A57 |
| Clearance Angle | 11° |
| Coating | Chemical vapor deposition |
| Corner Radius | 0.024" |
| Cutting Edge Length | 12.7 mm |
| Finish | Titanium Aluminum Nitride, Aluminum Oxide, Titanium Nitride |
| Hole Type | With Hole |
| Inscribed Circle | 1/2" |
| Insert Size | 120606 |
| Material | Carbide |
| Number Of Cutting Edges | 4 |
| Primary Material Application | Cast Iron |
| Rake | Positive |
| Shape | Square |
| Style | SPHW |
| System Of Measurement | Imperial |
| Thickness | 1/4" |
| Ansi Code | SPHW120606-A57 |
| Coating Process | CVD |
| Finish - Machining | TiCN+Al2O3+(TiN) |
| Insert Style | SPHW |
| Iso Number | SPHW120606-A57 |
| Manufacturer Grade | WAK15 |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Primary Material Application Iso Code | K |
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
| Product | Model | Price | |
|---|---|---|---|
 |
SPMW070308-A67 WKP25S | €16.47 | |
 |
SNHQ1205ZZR-A57T WKP35S | €66.73 | |
|
SNHQ1205ZZR-A57T WAK15 | €65.50 | |
|
SNHQ1205ZZR-A57T WKP25S | €66.73 | |
 |
SNMX160620-F27 WKP35G | - | RFQ
|
|
SNMX160620-D27 WKP35G | - | RFQ
|
|
SNMX160620-F57 WKP35G | - | RFQ
|
