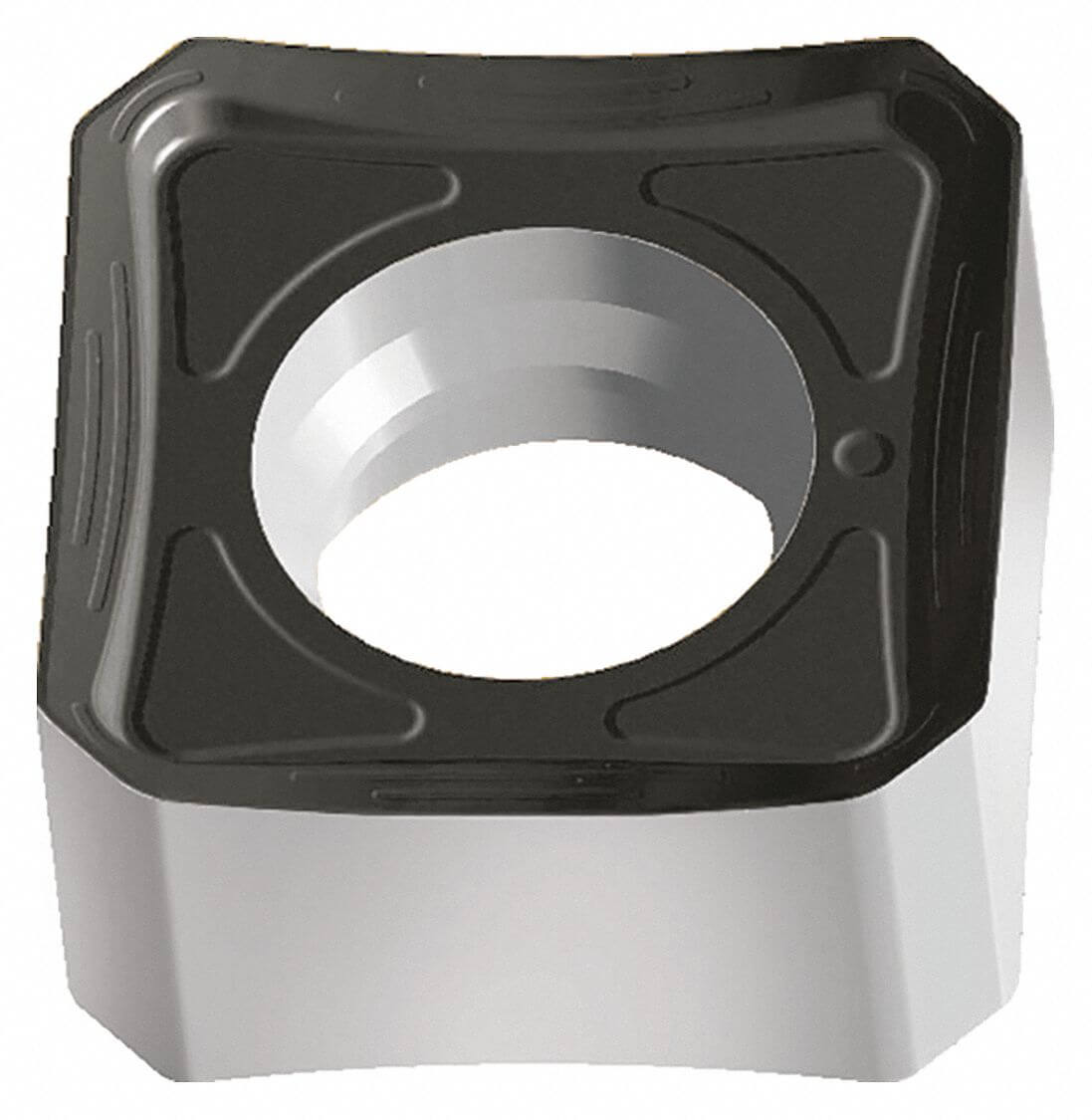

| Item | Milling Insert |
| Chip-breaker | F57 |
| Coating | PVD |
| Cutting Direction | Neutral |
| Grade | Grade WSP45S |
| Insert Size | 1606 |
| Iso Number | SNGX1606ANN-F57 |
| Lead Angle | 0° |
| Mounting Style | Screw |
| No. Of Edges | 8 |
| Nose Radius | Chamfer |
| Primary Material Application | Medium |
| Rake | Negative |
| Shape | Square |
| Style | SNGX |
| Thickness | 0.242" |
| Ansi Code | SNGX1606ANN-F57 WSP45S |
| Chip-breaker Code | F57 |
| Chip-breaker Style | 16°Chipbreaker Groove |
| Clearance Angle | 0° |
| Coating Process | PVD |
| Corner Radius | 3/64" |
| Cutting Application | Milling |
| Cutting Edge Length | 16 mm |
| Finish - Machining | TiAlN+Al2O3+Al |
| For Toolholder | F2339.T14.016.Z02.11, F2339.T18.020.Z02.15, F2339.T22.025.Z02.20, F2339.T28.030.Z02.24, F2339.T28.032.Z02.25, F2339.T36.040.Z02.31, F2339.T45.050.Z02.40, F2339.W16.016.Z02.11, F2339.W20.020.Z02.15, F2339.W25.025.Z02.20, F2339.W32.030.Z02.24, F2339.W32.032.Z02.25, F2339.W40.040.Z02.31 |
| For Use With | F2339 Ball Nose Mill |
| Included Angle | 90° |
| Inscribed Circle | 5/8" |
| Insert Holding Type | Screw |
| Insert Style | SNGX |
| Manufacturer Grade | WSP45S |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Number Of Cutting Edges | 4 |
| Primary Material Application Iso Code | M, P, S |
| Wiper Insert | Yes |
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 1.1 |
| Ship length (cm) | 9.8 |
| Ship width (cm) | 1.4 |
| Country of Origin | DE |
| Product | Model | Chip-breaker | Insert Size | Insert Thickness | Lead Angle | No. Of Edges | Nose Radius | Rake | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SPGT120606-F57 | F57 | 120606 | 0.25" | 11 Degrees | 4 | 0.024" | Positive | SPGT | €34.45 | |
 |
SPMT120606-D51 | D51 | 120606 | 0.25" | 11 Degrees | 4 | 0.024" | Positive | SPMT | - | RFQ
|
 |
SPMT120606-D57 | D57 | 120606 | 0.25" | 11 Degrees | 4 | 0.024" | Positive | SPMT | - | RFQ
|
 |
SNMX120512-F57 | F57 | 120512 | 0.252" | 0 Degrees | 8 | 0.047" | Negative | SNMX | €28.13 | |
|
SNMX160620-F57 | F57 | 160620 | 0.242" | 0 Degrees | 8 | 0.079" | Negative | SNMX | €36.54 | |
|
SNMX160640-F57 | F57 | 160640 | 0.242" | 0 Degrees | 8 | 0.157" | Negative | SNMX | - | RFQ
|
