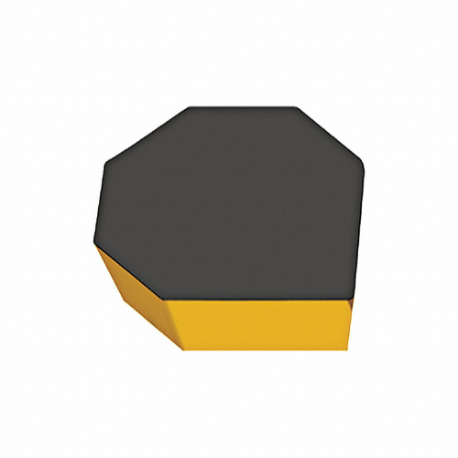

| Item | Milling Insert |
| Ansi Number | OPHX0504ZZR-A57 |
| Chip-breaker | Yes |
| Chip-breaker Code | A57 |
| Clearance Angle | 11° |
| Coating | Chemical vapor deposition |
| Corner Radius | 0.071" |
| Cutting Application | Finishing |
| Cutting Edge Length | 12.7 mm |
| Finish | Titanium Aluminum Nitride, Aluminum Oxide, Titanium Nitride |
| Hole Type | No Hole |
| Inscribed Circle | 1/2" |
| Insert Size | 504 |
| Material | Carbide |
| Number Of Cutting Edges | 1 |
| Primary Material Application | Cast Iron |
| Rake | Positive |
| Shape | Octagon |
| Style | OPHX |
| System Of Measurement | Imperial |
| Thickness | 0.188" |
| Width | 1/2" |
| Ansi Code | OPHX0504ZZR-A57 |
| Coating Process | CVD |
| Finish - Machining | TiCN+Al2O3+(TiN) |
| Insert Style | OPHX |
| Iso Number | OPHX0504ZZR-A57 |
| Manufacturer Grade | WAK15 |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Primary Material Application Iso Code | K |
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
| Product | Model | Pkg. Qty. | Price | |
|---|---|---|---|---|
 |
OPHX0504ZZN-A88 WXM15 | 10 | €37.86 | |
 |
OPHX0504ZZR-A27 WCB80 | 1 | €192.28 | |
 |
ONMU050408-D57 WKP35G | 10 | €45.44 | |
 |
ODHW050408-A57 WKP35G | 1 | - | RFQ
|
 |
ODMT0504ZZN-D57 WSM35S | 10 | - | RFQ
|
 |
ONHU050408-F67 WSM35S | 10 | - | RFQ
|
 |
ODHT0504ZZN-F57 WKP35G | 10 | €37.89 |
