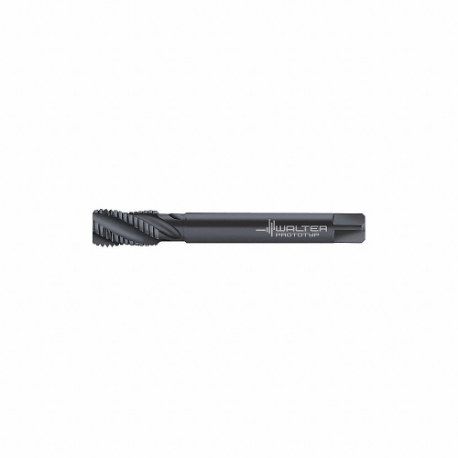

| Item | Spiral Flute Tap |
| 65% Thread Drill Size | 1.145" |
| 75% Thread Drill Size | 1.128" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 1.122" |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Finish | Vaporized |
| Fits Class | Class 3B |
| Helix Angle | 40° |
| Number Of Flutes | 4 |
| Overall Length | 180 mm |
| Primary Material Application | Stainless Steel |
| Secondary Material Application | Steel |
| Shank Dia. | 22 mm |
| Shank Length | 65 mm |
| Shank Type | Straight |
| Spiral Direction | Right Hand |
| Square Size | 18 mm |
| System Of Measurement | Imperial |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 2184-1-C |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 30 mm |
| Thread Limit | 3B |
| Thread Size | 1 1/4"-8 |
| Thread Standard | Coarse |
| Threads Per Inch | 8 |
| Class Of Fit | Class 3B |
| Material Grade - Machining | Grade VAP |
| Measurement System | Fractional Inch |
| Primary Material Application Iso Code | M |
| Secondary Material Application Iso Code | P |
| Shank Type - Machining | Straight |
| Standards | DIN 2184-1-C |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | VAP |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1 1/4"-8 |
| Thread Limit / Class Of Fit | 3B, 3B |
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 18 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
A2340876-UNF0 | Spiral Flute Tap | €127.44 | |
 |
A2340806-UNF0 | Spiral Flute Tap | €112.27 | |
 |
224101-UNJC10 | Spiral Flute Tap | €144.63 | |
 |
224164-UNC10 | Spiral Flute Tap | €90.39 | |
 |
22416-UNC10 | Spiral Flute Tap | €74.76 | |
 |
224102-UNC10 | Spiral Flute Tap | €74.76 | |
 |
P22509-UNC10 | Spiral Flute Tap | €55.16 |
