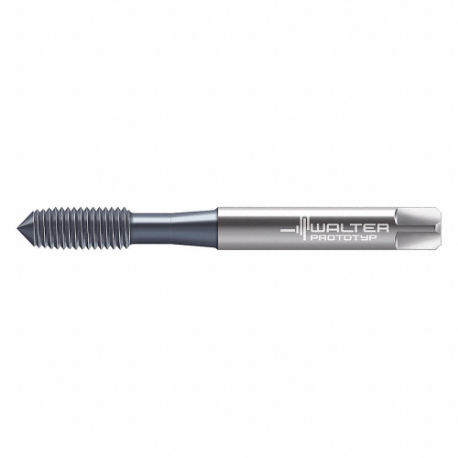

| Item | Thread Forming Tap |
| 55% Thread Drill Size | 2.8 mm |
| 65% Thread Drill Size | 0.109" |
| 75% Thread Drill Size | 2.75 mm |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Finish | Titanium Carbonitride Coated |
| Number Of Flutes | 4 |
| Overall Length | 56 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Steel |
| Secondary Material Application | Nickel, Stainless Steel, Titanium |
| Shank Dia. | 3.5 mm |
| Shank Length | 46 mm |
| Spiral Direction | Neutral |
| Square Size | 2.7 mm |
| Tap Material | Carbide |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 10 mm |
| Thread Limit | 6HX |
| Thread Pitch | 0.5 mm |
| Thread Standard | Metric Coarse |
| Material Grade - Machining | TiCN |
| Primary Material Application Iso Code | N, P |
| Secondary Material Application Iso Code | M, S |
| Standards | DIN 2174 |
| Tap Chamfer | Modified Bottom, Semi Bottoming |
| Tap Finish | TiCN |
| Tap Style | Thread Forming |
| Thread Limit / Class Of Fit | 6HX |
| Thread Size | M3 x 0.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.6 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
