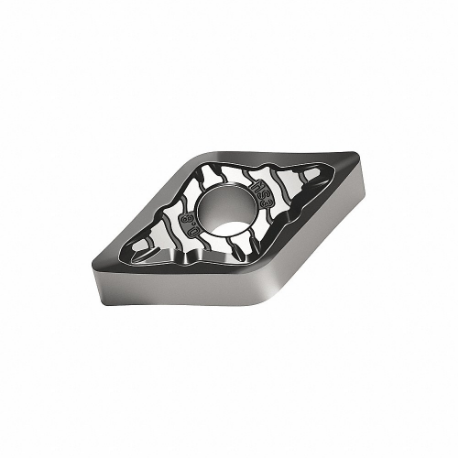

| Item | Turning Insert |
| Ansi Code | DNMG431-MS3 WSM01 |
| Chip-breaker Code | MS3 |
| Clearance Angle | 0° |
| Corner Radius | 0.016" |
| Cutting Application | Turning |
| Cutting Depth | 0.6 mm to 2.5 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 15.5 mm |
| Finish | Titanium Aluminum Nitride Coat |
| Included Angle | 55° |
| Inscribed Circle | 1/2" |
| Insert Code | DNMG431 |
| Insert Holding Type | Straight Hole |
| Insert Style | DNMG |
| Material | Carbide |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Rake | Negative |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 0.188" |
| Chip-breaker | Yes |
| Depth Of Cut | 0.6 mm to 2.5 mm |
| Finish - Machining | TiAlN |
| Iso Number | DNMG150404-MS3 WSM01 |
| Manufacturer Grade | WSM01 |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Primary Material Application Iso Code | M, S |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
| Model | Price | |
|---|---|---|
| CCGT060202-X5 WTP35 | €30.60 | |
| CCGT060202-X5 WAK15 | €30.26 | |
| CCGT060202-X15 WTP35 | €30.60 | |
| CCGT060202-X15 WXM15 | €30.26 | |
| CCGT060204-X5 WTP35 | €30.70 | |
| CCGT060204-X15 WXM15 | €29.91 | |
| CCGT060204-X5 WXM15 | €30.26 |
