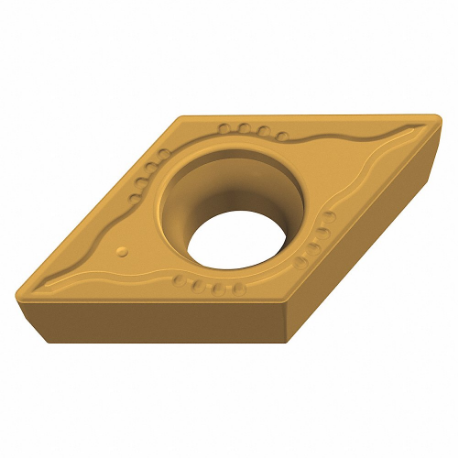

WALTER TOOLS DCMT11T304-MV4 WPV10 Diamond Turning Insert, Neutral, 5/32 Inch Thick, 1/64 Inch Corner Radius
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Turning Insert |
| Ansi Code | DCMT3(2.5)1-MV4 |
| Chip-breaker Code | MV4 |
| Clearance Angle | 7° |
| Corner Radius | 0.016" |
| Cutting Direction | Neutral |
| Cutting Edge Length | 11.63 mm |
| Included Angle | 55° |
| Inscribed Circle | 3/8" |
| Insert Code | DCMT32.51 |
| Insert Style | DCMT |
| Rake | Positive |
| Shape | Diamond |
| System Of Measurement | Imperial |
| Thickness | 5/32" |
| Through Hole Inside Dia. | 0.173" |
| Chip-breaker | Yes |
| Finish - Machining | TiCN+Al2O3+TiN |
| Iso Number | DCMT11T304-MV4 |
| Manufacturer Grade | WPV10 |
| Measurement System | Fractional Inch |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
| Model | Price | |
|---|---|---|
| CCGT060202-X5 WTP35 | €30.60 | |
| CCGT060202-X5 WAK15 | €30.26 | |
| CCGT060202-X15 WTP35 | €30.60 | |
| CCGT060202-X15 WXM15 | €30.26 | |
| CCGT060204-X5 WTP35 | €30.70 | |
| CCGT060204-X15 WXM15 | €29.91 | |
| CCGT060204-X5 WXM15 | €30.26 |
