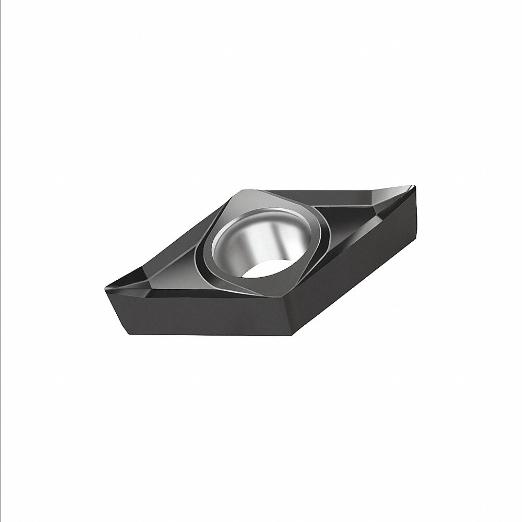

| Item | Turning Insert |
| Ansi Code | DCGT3(2.5)0.2-MN2 WNN10 |
| Chip-breaker | Yes |
| Chip-breaker Code | MN2 |
| Clearance Angle | 7° |
| Corner Radius | 0.004" |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 11.63 mm |
| Depth Of Cut | 0.1 mm to 1.5 mm |
| Finish - Machining | TiAlN |
| Included Angle | 55° |
| Inscribed Circle | 3/8" |
| Insert Code | DCGT32.5.2 |
| Insert Holding Type | 40° to 60°Countersink Hole |
| Insert Style | DCGT |
| Iso Number | DCGT11T301-MN2 WNN10 |
| Manufacturer Grade | WNN10 |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Primary Material Application Iso Code | N |
| Rake | Positive |
| Shape | Rhombic |
| Thickness | 5/32" |
| Ship weight (kg) | 0.05 |
| Country of Origin | DE |
