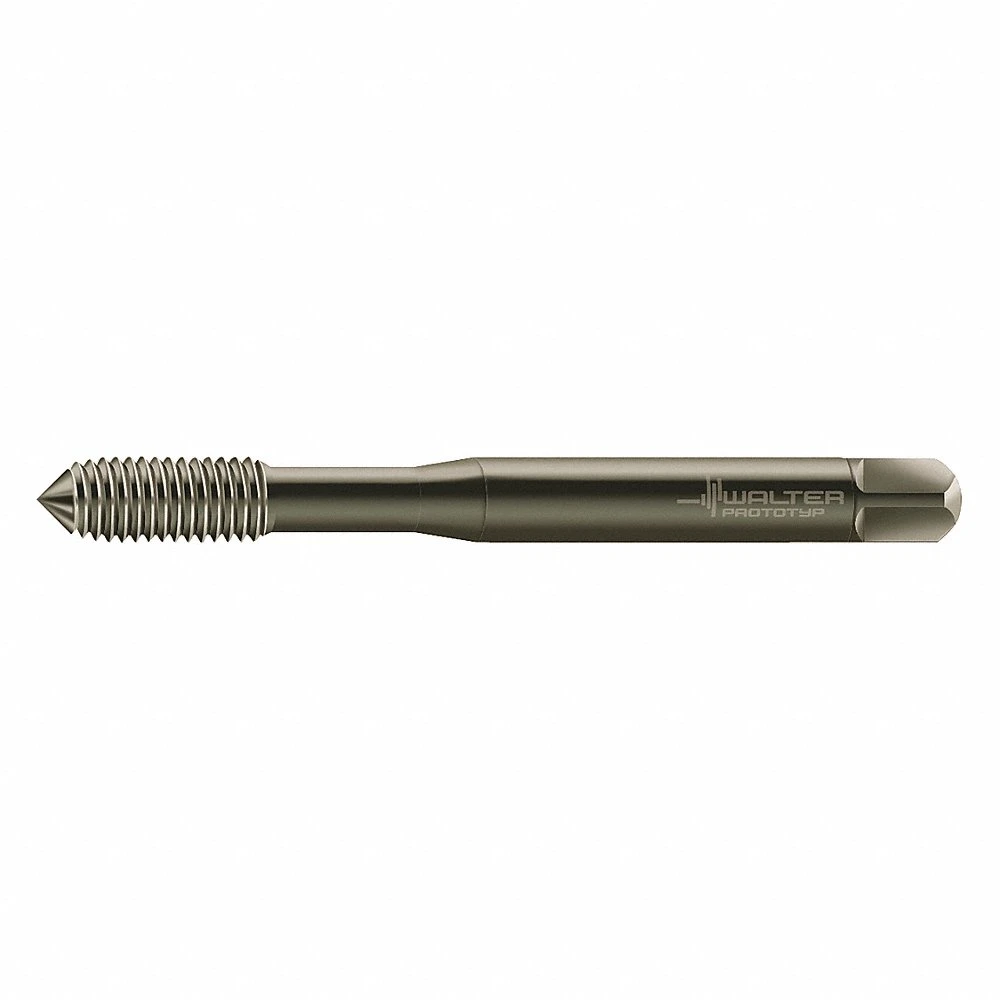

| Item | Thread Forming Tap |
| 55% Thread Drill Size | 4.4 mm |
| 65% Thread Drill Size | 4.3 mm |
| 75% Thread Drill Size | 4.2 mm |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Finish | Black Oxide |
| Fits Class | Class 6HX |
| Number Of Flutes | 5 |
| Overall Length | 70 mm |
| Secondary Material Application | Steel |
| Shank Dia. | 6 mm |
| Shank Length | 45 mm |
| Spiral Direction | Neutral |
| Square Size | 4.9 mm |
| Tap Material | High Speed Steel |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 13 mm |
| Thread Limit | 6HX |
| Thread Pitch | 0.8 mm |
| Thread Standard | Metric Coarse |
| Class Of Fit | Class 6HX |
| Material Grade - Machining | Grade NID |
| Secondary Material Application Iso Code | P |
| Standards | DIN 2174 |
| Tap Chamfer | Modified Bottom, Semi Bottoming |
| Tap Finish | Black Oxide |
| Tap Style | Thread Forming |
| Thread Limit / Class Of Fit | 6HX, 6HX |
| Thread Size | M5 x 0.8 |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
A2340876-UNF0 | Spiral Flute Tap | €127.44 | |
 |
A2340806-UNF0 | Spiral Flute Tap | €112.27 | |
 |
224101-UNJC10 | Spiral Flute Tap | €144.63 | |
 |
224164-UNC10 | Spiral Flute Tap | €90.39 | |
 |
22416-UNC10 | Spiral Flute Tap | €74.76 | |
 |
224102-UNC10 | Spiral Flute Tap | €74.76 | |
 |
P22509-UNC10 | Spiral Flute Tap | €55.16 |
