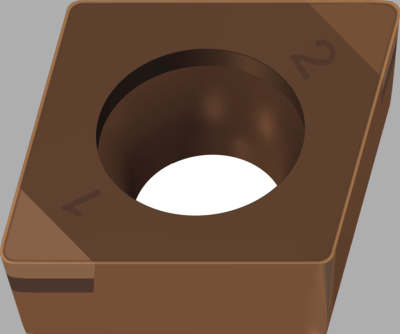

| Item | Turning Insert |
| Ansi Code | CCGW3(2.5)1TS-MW2 |
| Chip-breaker Code | TS-MW2 |
| Clearance Angle | 7° |
| Corner Radius | 0.016" |
| Cutting Direction | Neutral |
| Cutting Edge Length | 9.67 mm |
| Included Angle | 80° |
| Inscribed Circle | 3/8" |
| Insert Code | CCGW32.51 |
| Insert Style | CCGW |
| Material | CBN |
| Rake | Positive |
| Shape | Diamond |
| System Of Measurement | Imperial |
| Thickness | 5/32" |
| Through Hole Inside Dia. | 0.173" |
| Chip-breaker | Yes |
| Iso Number | CCGW09T304TS-MW2 |
| Manufacturer Grade | WBH10C |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| Ship weight (kg) | 0.01 |
| Country of Origin | DE |
| Model | Price | |
|---|---|---|
| CCGT060202-X5 WTP35 | €30.60 | |
| CCGT060202-X5 WAK15 | €30.26 | |
| CCGT060202-X15 WTP35 | €30.60 | |
| CCGT060202-X15 WXM15 | €30.26 | |
| CCGT060204-X5 WTP35 | €30.70 | |
| CCGT060204-X15 WXM15 | €29.91 | |
| CCGT060204-X5 WXM15 | €30.26 |
