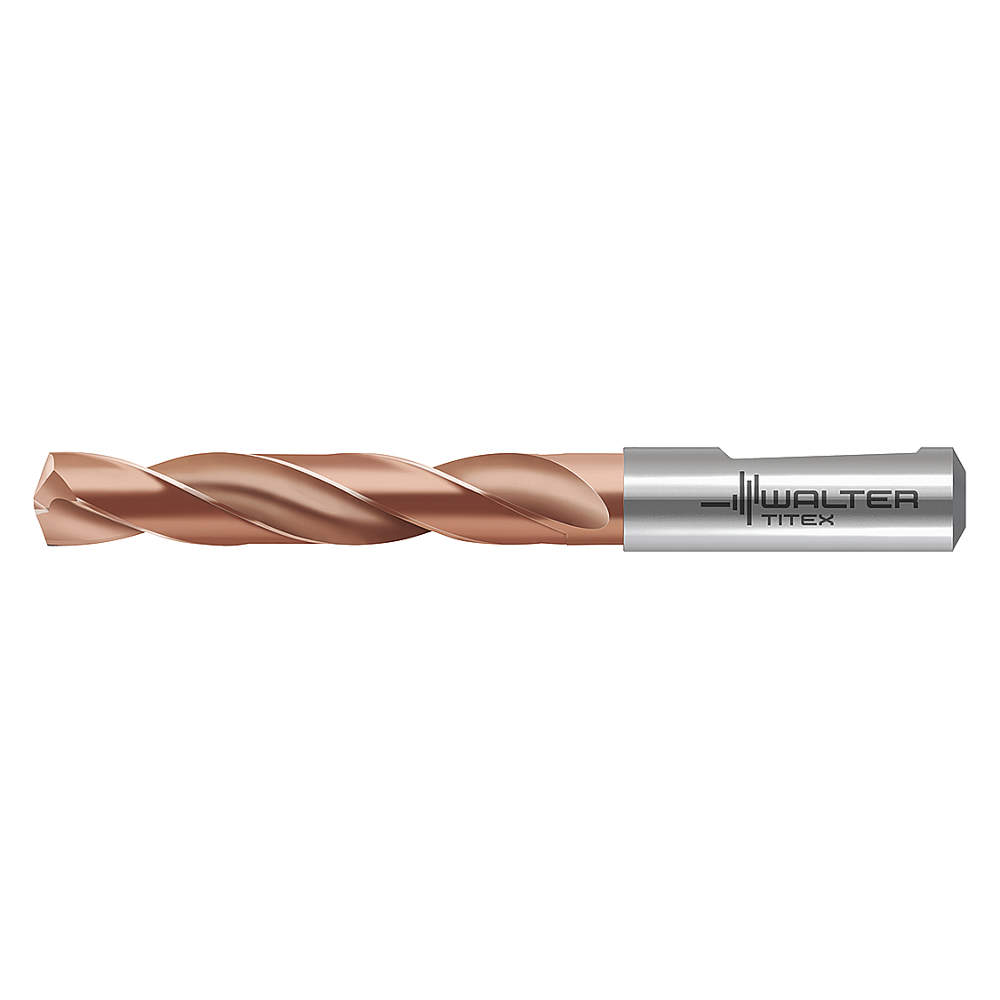

| Item | Jobber Drill Bit |
| Dimension Type | Metric |
| Flute Length | 2" |
| Grade | Grade XPL |
| Material | Solid Carbide |
| Overall Length | 4" |
| Point Angle | 140° |
| Shank Dia. | 10 mm |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.3661 |
| Depth:dia. Ratio | 5xD |
| Drill Bit Point Angle | 140° |
| Drill Bit Size | 9.3 mm |
| Drill Length Class | Jobber Length |
| Flute Type | Spiral |
| Material - Machining | Carbide |
| Material Grade - Machining | Grade XPL |
| Maximum Drilling Depth | 49 mm |
| Measurement System | Metric |
| Number Of Coolant Holes | 1 |
| Number Of Flutes | 2 |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, M, N, P, S |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper, Hardened Steel, Nickel, Titanium |
| Secondary Material Application Iso Code | H, N, O, S |
| Series | XD-pilot Series |
| Shank Diameter | 10 mm |
| Shank Length | 40 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | NOT RATED |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.3 |
| Ship width (cm) | 2.54 |
| HS code | 8209000030 |
| Country of Origin | CN |
| Product | Model | Cutting Direction | Decimal Equivalent | Finish | Flute Length | Grade | List Number | Overall Length | Point Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A1164TIN-12.5 | - | - | - | 2" | TiN | - | 4" | 140 Degrees | €208.48 | |
 |
A3399XPL-12.1 | Right Hand | 0.476" | XPL - AlCrN | 77mm | K30F | A3382 | 124mm | 140 Degrees | €379.52 | |
 |
A3486TIP-11 | Right Hand | 0.4331 | TiN TIP | 106.01mm | K30F | A3486 | 151mm | 130 Degrees | - | RFQ
|
|
A3486TIP-5.2 | Right Hand | 0.204" | TIP - TiN | 63mm | K30F | A3486 | 101mm | 130 Degrees | - | RFQ
|
 |
A3586TIP-5.1 | Right Hand | 0.2" | TIP - TiN | 63mm | K30F | A3586 | 101mm | 130 Degrees | - | RFQ
|
 |
A6181TFT-9/16IN | Right Hand | 0.562" | TFP - TiNAl | 65mm | K30F | A6181 | 133mm | 150 Degrees | €512.70 | |
 |
A6588TML-1 | Right Hand | 0.039" | TML - TiNAl | 21mm | K30F | A6588 | 55mm | 140 Degrees | €182.95 |
