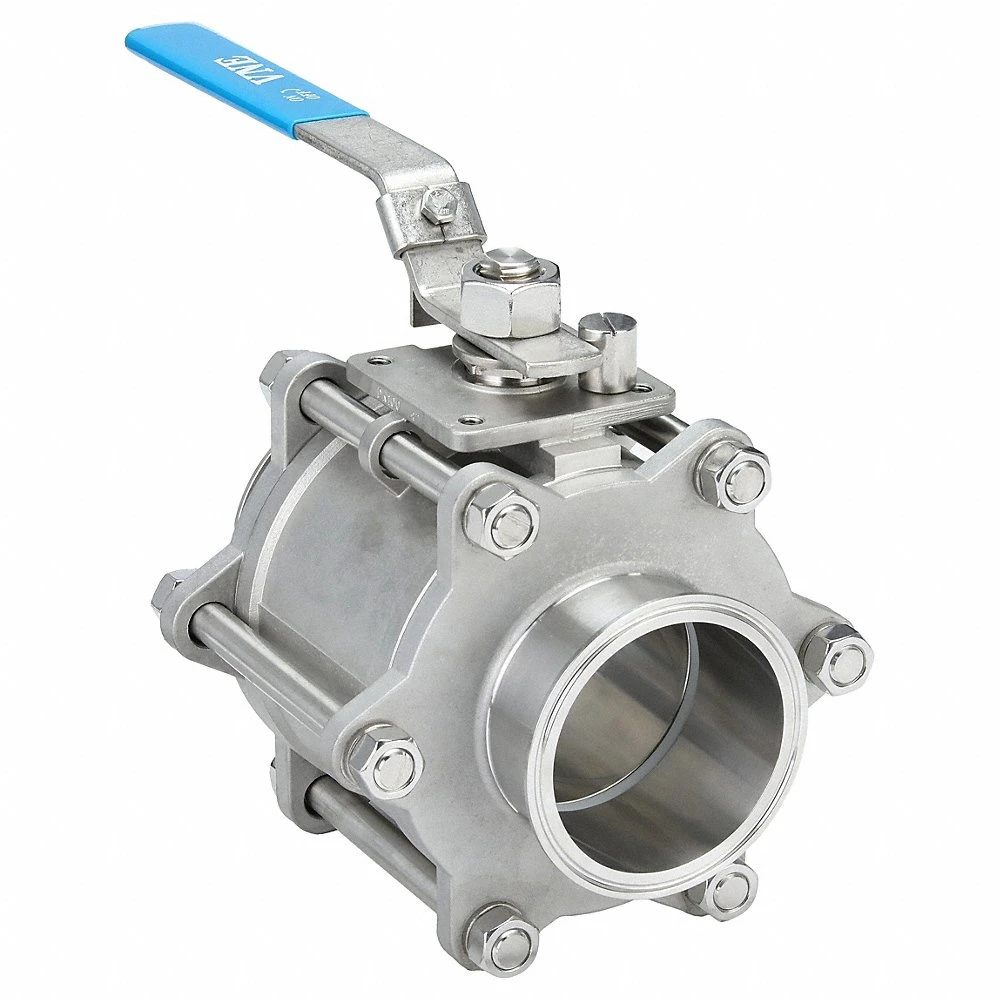

VNE STAINLESS EG90CC-64.0 Sanitary Ball Valve 316 Stainless Steel 2-way
Get it by Tuesday, Jun 17
€2,079.99 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Sanitary Ball Valve |
| Ball Material | Stainless Steel |
| Ball Valve Product Group | Manual |
| Body Material | Stainless Steel |
| Connection Type | Clamp |
| Grade | Grade 316 |
| Handle Type | Pad Lockable |
| Max. Pressure | 600 psi |
| Overall Length | 9.562" |
| Pipe Size | 4" |
| Port | Full |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Proof |
| Temp. Range | -65°F to +320°F |
| 3-a Compliance | Meets 3A Sanitary Standards |
| Average Surface Roughness (ra) | 20 ra μin. |
| Ball Opening Size | 3.83" |
| Ball Port Style | Full Port |
| Coefficient Of Volume (cv) | 1986 |
| Connection Size - Side 1 | 4" |
| Connection Size - Side 2 | 4" |
| Connection Type - Side 1 | Clamp |
| Connection Type - Side 2 | Clamp |
| For Media | Combustible Gases, Natural Gas, Steam, Water |
| Handle | Locking Lever |
| Handle Color | Blue |
| Handle Height | 6.26" |
| Handle Length | 13.07" |
| Handle Material | Grade 304 Stainless Steel |
| Included Mounting | ISO 5211 Actuator Mounting Pad |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure (steam) | 60 psi |
| Media Temp. Range | -65°F to 320°F |
| Nominal Valve Size | 4" |
| Standards | ASTM A351-CF8M, FDA LISTED |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | EG90CC |
| Vented Ball Valve | Non Vented |
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 24.31 |
| Ship width (cm) | 22.86 |
| HS code | 8481803040 |
| Country of Origin | TW |
| Model | Body Style | Max. Pressure | Overall Length | Pipe Size | Port | Seal Material | Valve Design | Price | |
|---|---|---|---|---|---|---|---|---|---|
| EG90CC-6.5 | 2-Way | 1000 psi | 3.5" | 1/2" | Full | PTFE | 2-Way | €130.68 | |
| EG90CC-6.75 | 2-Way | 1000 psi | 4" | 3/4" | Full | PTFE | 2-Way | €150.42 | |
| EG90CC-61.0 | 2-Way | 1000 psi | 4.5" | 1" | Full | PTFE | 2-Way | €204.95 | |
| EG90CC-61.5 | 2-Way | 1000 psi | 5.5" | 1.5" | Full | PTFE | 2-Way | €327.86 | |
| EG90CC-62.0 | 2-Way | 1000 psi | 6 9/64" | 2" | Full | PTFE | 2-Way | €433.82 | |
| EG90CC-62.5 | 2-Way | 600 psi | 7.75" | 2.5" | Full | PTFE | 2-Way | €1,021.98 | |
| EG90CC-63.0 | 2-Way | 600 psi | 9" | 3" | Full | PTFE | 2-Way | €1,358.75 |
